Twin Welding Hoses
-
Size range: 3/16” & 1/4”
Sunze Rubber is a professional manufacturer for rubber hoses. Therefore, our Twin Welding Hoses can resist up 900 psi and are certified by SGS. Also, Sunze Twin Welding hoses are designed to safely transport oxygen and acetylene gases to your welding torch or cutting equipment for your metalworking projects.
- Size range: 3/16” & 1/4” Size range: 3/16” & 1/4”

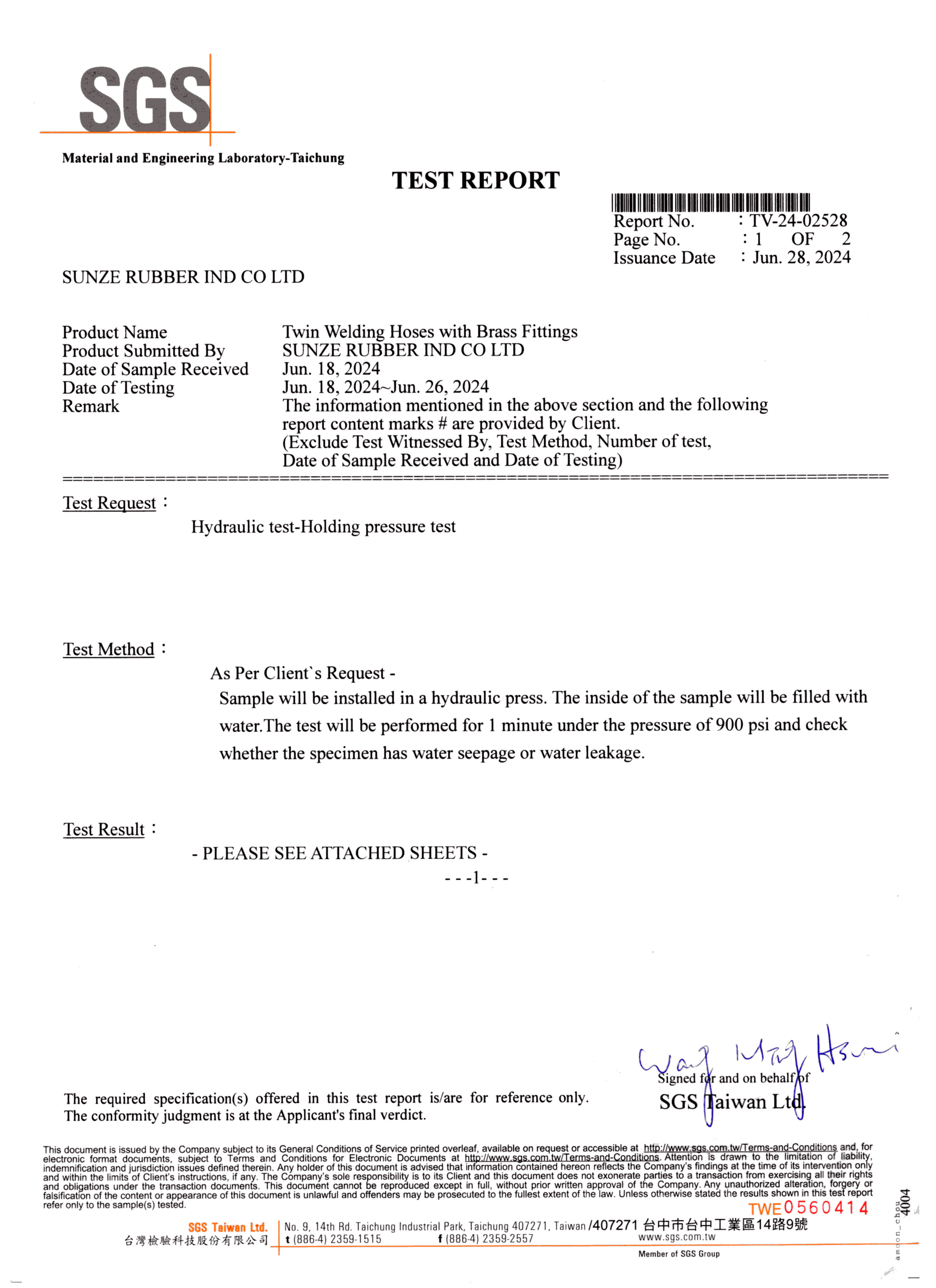

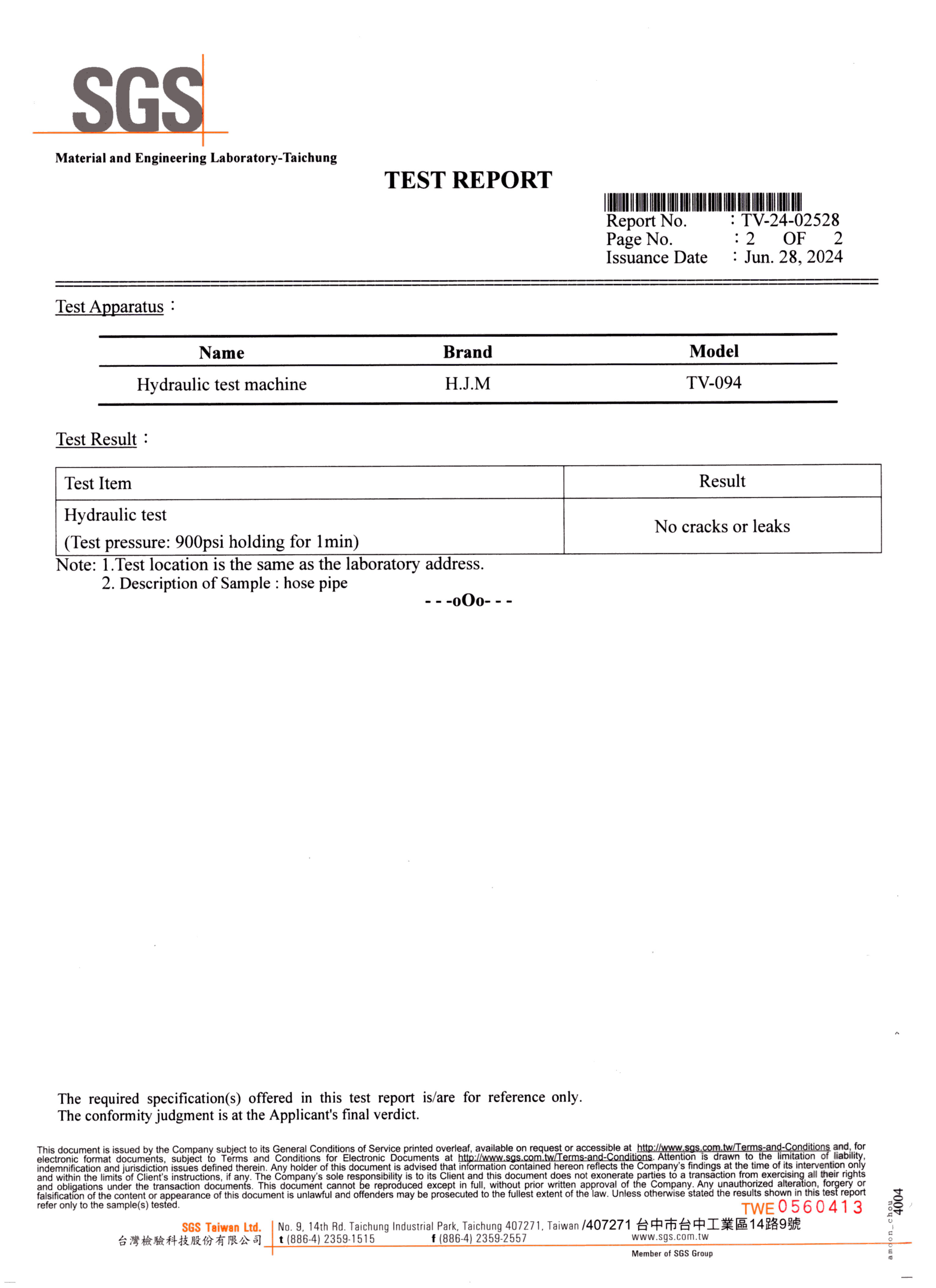

SGS Certified:
Our twin Welding hoses can resist up to 900 Psi.
Spec:
Tube: black, smooth EPDM synthetic rubber.
Reinforcement: high tensile polyester braid.
Cover: EPDM smooth finished, weather and abrasion resistant, red with green
Fittings: Brass hose tail with 1/4" Female nut
Temperature range:
-30°C / +70°C.
Safety factor:
3 : 1
|
CODE |
ID inch |
mm |
OD inch |
mm |
Rein. |
Coil/ft |
W/P psi |
W/P BAR |
M3/Rl |
|
AGHW101 |
3/16 |
4.7 |
7/16 |
11.1 |
1B |
25 |
300 |
20 |
0.045/10RLS |
|
AGHW102 |
3/16 |
4.7 |
7/16 |
11.1 |
1B |
50 |
300 |
20 |
0.042/5RLS |
|
AGHW104 |
3/16 |
4.7 |
7/16 |
11.1 |
1B |
100 |
300 |
20 |
0.051/3RLS |
|
AGHW201 |
1/4 |
6.3 |
1/2 |
12.7 |
1B |
25 |
300 |
20 |
0.051/10RLS |
|
AGHW202 |
1/4 |
6.3 |
1/2 |
12.7 |
1B |
50 |
300 |
20 |
0.048/5RLS |
|
AGHW204 |
1/4 |
6.3 |
1/2 |
12.7 |
1B |
100 |
300 |
20 |
0.057/3RLS |
Equipment of our factory:
Sunze Rubber Ind. Co. Ltd.
7Fl. No.9 Lane 83 Sec.1 Chung Shan N. Rd. Taipei. Taiwan
