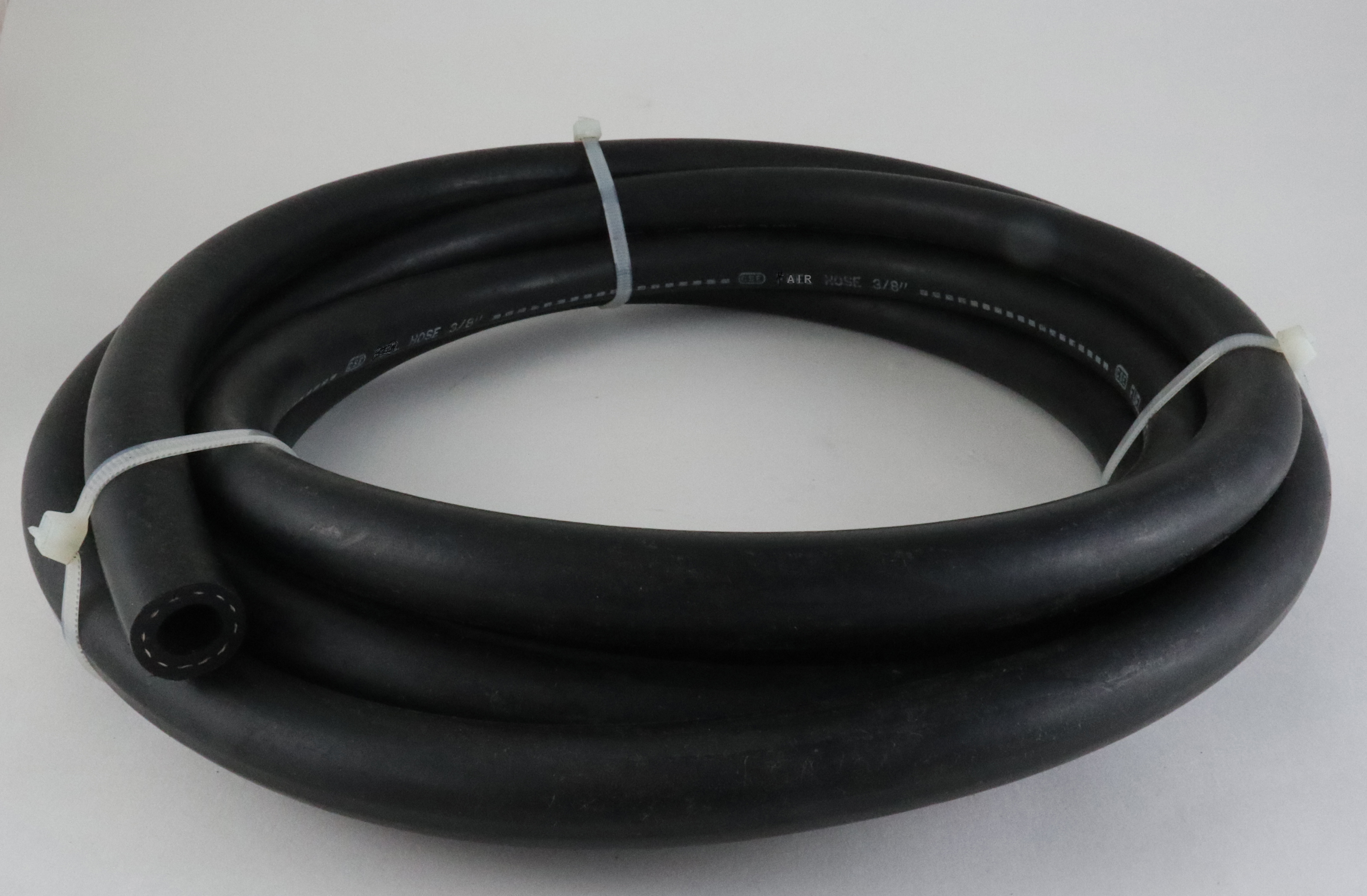

Fuel Line Hose
-
SAE J30R7
Fuel Line Hose Designed for use on all types of carbureted gasoline engines, the Sunze Fuel Line Hose offers excellent resistance to oil, gasoline, grease, and weather. The hose is constructed with a CSM cover and NBR nitrile tube for use with leaded, unleaded gasoline and diesel fuel. Reinforced with a single ply of braided cord, the Sunze Fuel Line Hose meets SAE J30R7 requirements. Note: Not suitable for gasoline/oil mixed fuels, alcohol blended fuels, or bio-diesel fuel. NOT suitable for fuel injection systems. For use on vehicles not subject to CARB or EPA requirements.
- Available Size Size range: 1/8” to 7/16
Cover: Smooth, CSM rubber black
Tube: Smooth, NBR rubber black
Max Temp: 80℃
Reinforcement: High tensile polyester braid
Packing: 50’(15.24m)/rl, please note, they are will be have some zero code hose length packing.
|
Part Nr. |
ID (mm) |
T (mm) |
w/p (psi) |
L’ (m) |
|
AH6FL032 |
1/8(3.2) |
2.58 |
50 |
50(15.24) |
|
AH6FL047 |
3/16(4.7) |
2.78 |
50 |
50(15.24) |
|
AH6FL064 |
1/4(6.35) |
3.17 |
50 |
50(15.24) |
|
AH6FL079 |
5/16(7.9) |
3.17 |
50 |
50(15.24) |
|
AH6FL095 |
3/8(9.5) |
3.17 |
50 |
50(15.24) |
|
AH6FL111 |
7/16(11.1) |
3.57 |
35 |
50(15.24) |
