King nipples
-
3/4 inch to 10 inch

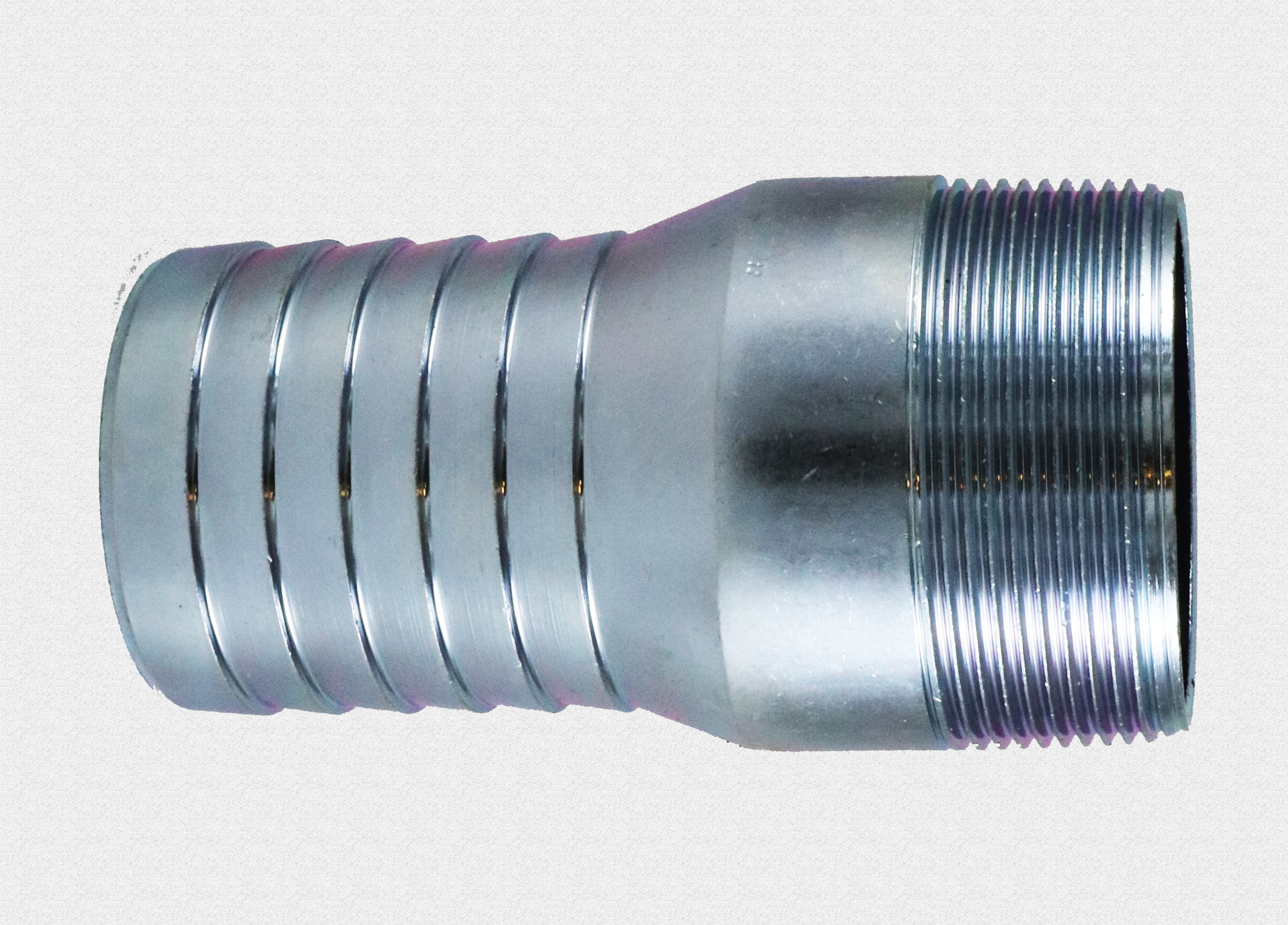

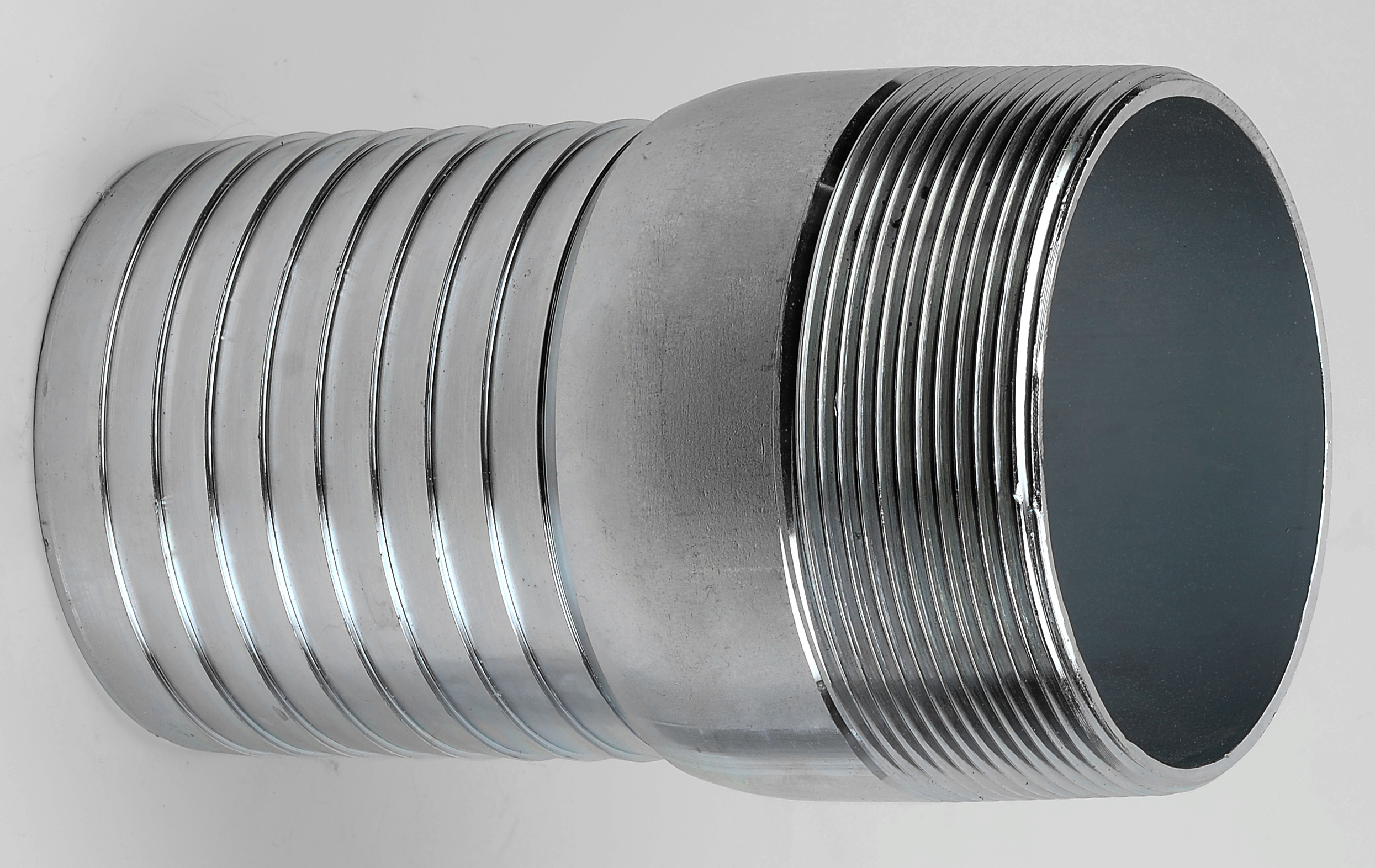

Sunze Combination hose Nipples or also known as King nipples are for low or medium pressure service such as water, material handling, oil, mud, and suction/delivery hose. Carbon steel FDKP (SCH120), plated FD4 (SCH40) and FDKS (SS304) are all with serrated shank and NPT or BSPT thread end. You may fasten it with double bolt clamps. Moreover, the welding line within the tube of FD4 has been planed, which is cleaner and can increase the flow rate of liquid and material.
We offer competitive pcices and more discount for bulk purchase.
All product are made in Taiwan.
Combination Nipple
|
|
Type: FDKP (SCH120) carbon steel plated, NPT, BSPT. SS 304 available on request. |
| Code Nr. | Overall length mm | SCH120 Thick mm | Pkg/Qty | |
| 1/2” | FDKP050 | 75 | 2.5 | 300 |
| 3/4” | FDKP075 | 80 | 2.5 | 200 |
| 1” | FDKP100 | 85 | 2.8 | 200 |
| 1-1/4” | FDKP125 | 92 | 3.2 | 60 |
| 1-1/2” | FDKP150 | 100 | 3.2 | 60 |
| 2” | FDKP200 | 117 | 3.2 | 50 |
| 2-1/2” | FDKP250 | 140 | 4.0 | 25 |
| 3” | FDKP300 | 152 | 4.0 | 20 |
| 4” | FDKP400 | 184 | 4.0 | 12 |
| 5” | FDKP500 | 239 | 4.5 | 4 |
| 6” | FDKP600 | 253 | 4.5 | 4 |
| 8” | FDKP800 | 285 | 6.0 | 2 |
| 10” | FDKP1000 | 335 | ||
| 12” | FDKP1200 | 400 |
 |
Type: FDK4 (SCH40) Carbon steel plated, NPT, BSPT. SS 304 available on request. |
| Code Nr. | Overall length mm | SCH40 Thick mm | Pkg/Qty | |
| 1/2” | FDK4050 | 75 | 2.8 | 300 |
| 3/4” | FDK4075 | 80 | 2.8 | 200 |
| 1” | FDK4100 | 85 | 3.0 | 200 |
| 1-1/4” | FDK4125 | 92 | 3.5 | 60 |
| 1-1/2” | FDK4150 | 100 | 3.5 | 60 |
| 2” | FDK4200 | 117 | 3.5 | 50 |
| 2-1/2” | FDK4250 | 140 | 4.5 | 25 |
| 3” | FDK4300 | 152 | 4.5 | 20 |
| 4” | FDK4400 | 184 | 4.5 | 12 |
| 5” | FDK4500 | 239 | 6.0 | 4 |
| 6” | FDK4600 | 253 | 7.0 | 4 |
| 8” | FDK4800 | 285 | 7.0 | 2 |
| 10” | FDK41000 | 335 | 8.0 | 1 |
| 12” | FDK41200 | 400 | 9.0 | 1 |
