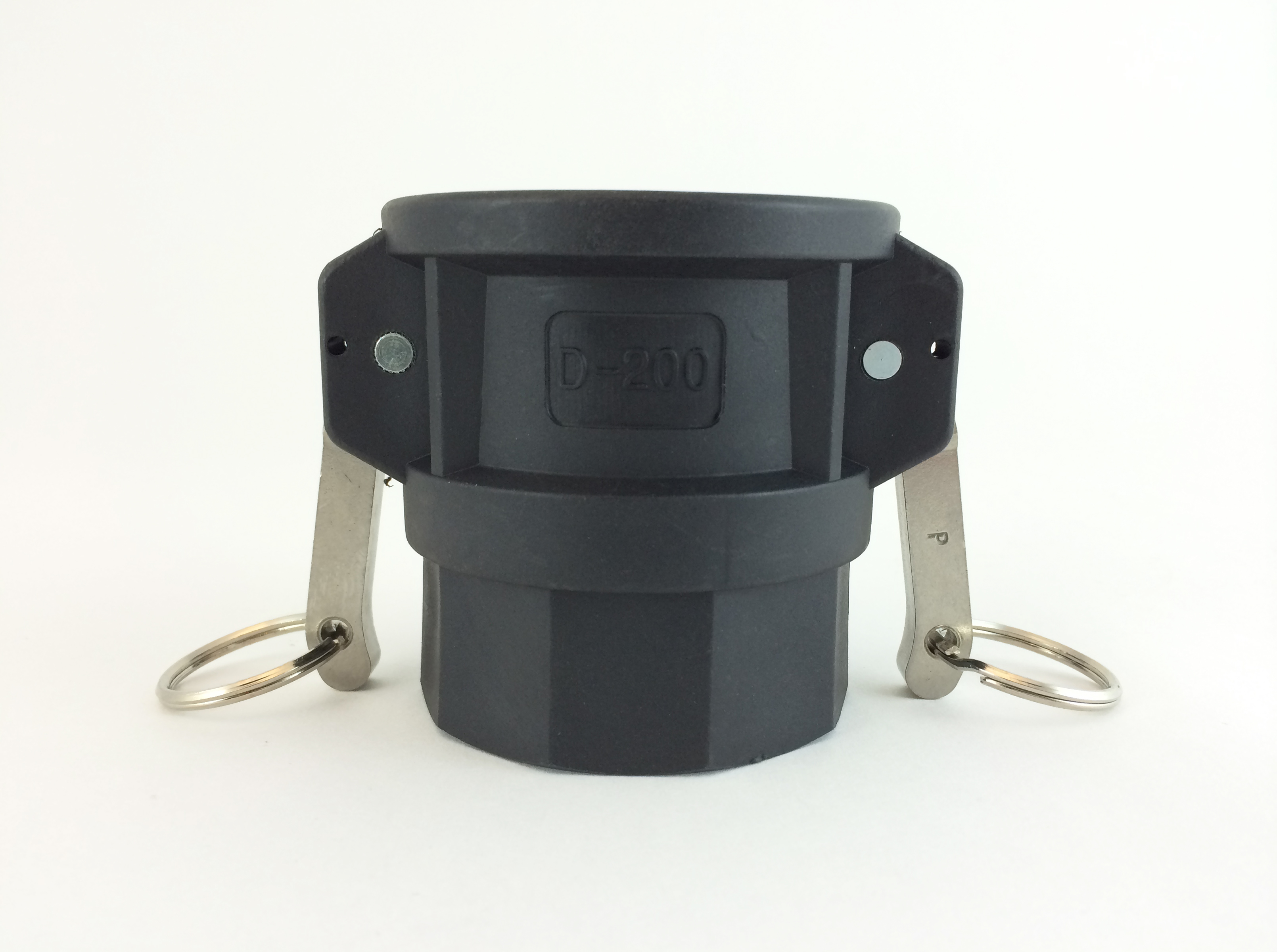

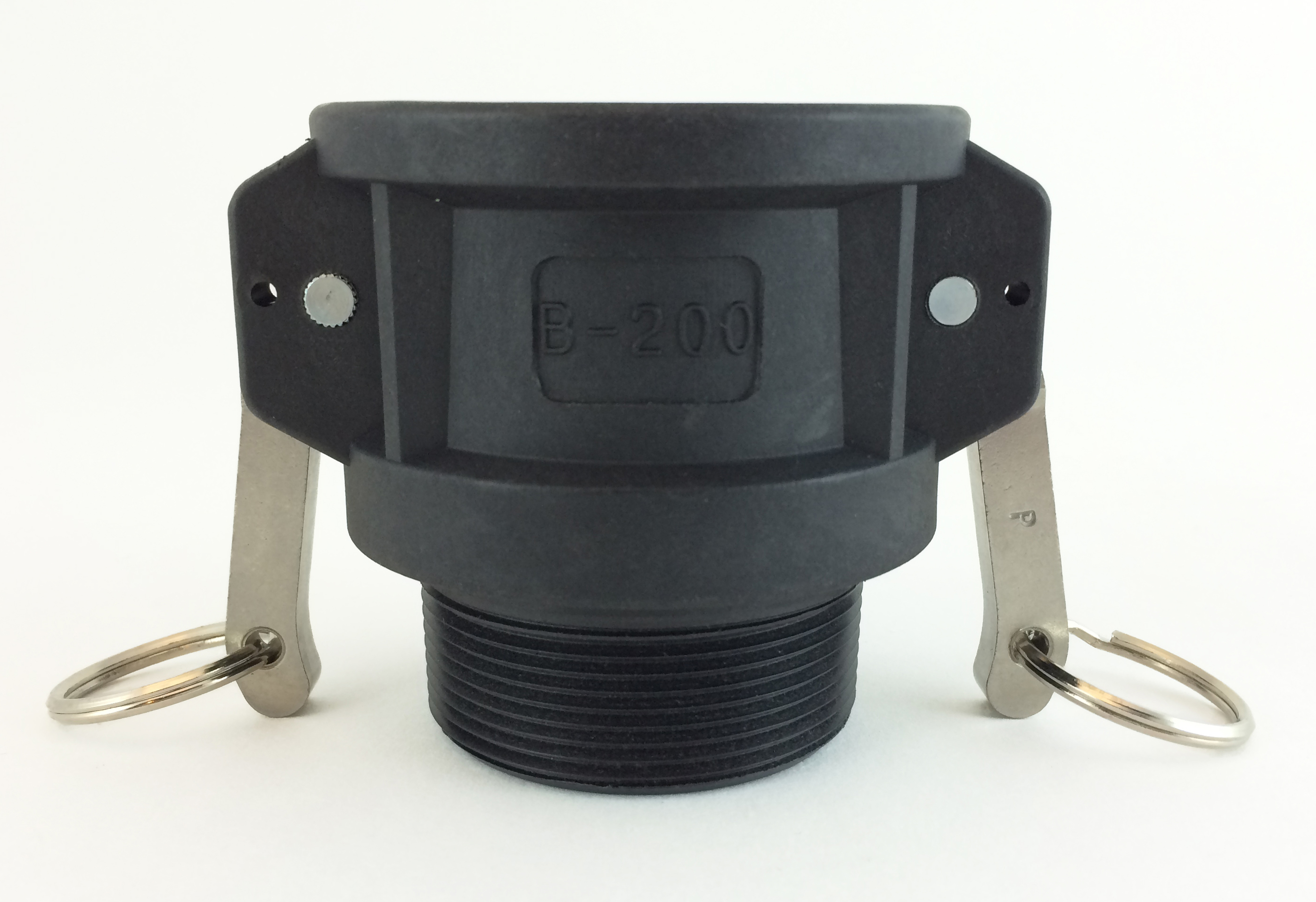

As you can see in the red rectangular part of above photo, our arm and lug are thicker ,wider and heavier than other competitors'. We provide you more durable and easier connection camlock fittings in the market.
HOW TO MAKE A CAMLOCK COUPLING
To make connection simply slip the adapter into the coupler with normal hand pressure, press cam levers down. The cams then bear on the adapter groove, and force the adapter to compress the coupler gasket for a positive seal.
Uncoupling is as quick and simple as coupling, just lift the cam arms and remove the adapter.
PP camlock fittings contend fiberglass

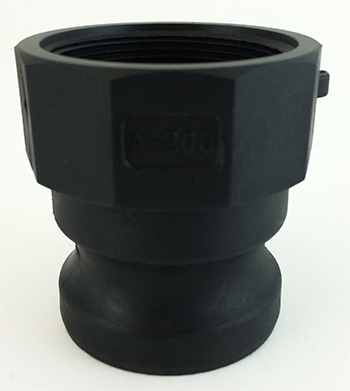

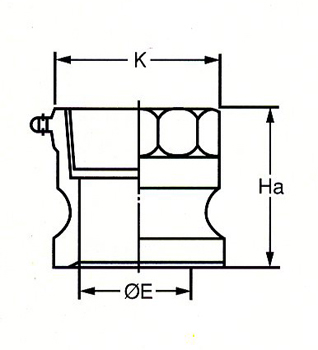

Type A
Series Code: FIPA
SIZE | INCH | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 3 |
mm | 20 | 25 | 32 | 40 | 50 | 80 | |
K | 33 | 41 | 50 | 57 | 68 | 96 | |
Ha | 41 | 49 | 54 | 55 | 62 | 73 | |
E | 19 | 24 | 29 | 37 | 46 | 73 |

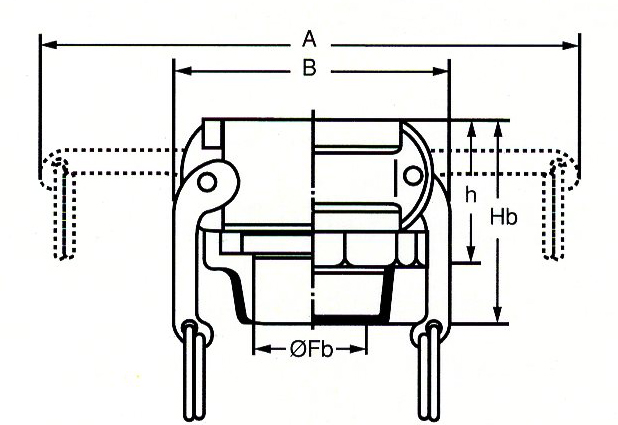

Type B
Series Code: FIPB
SIZE | INCH | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 3 |
mm | 20 | 25 | 32 | 40 | 50 | 80 | |
A | 110 | 125 | 177 | 188 | 197 | 248 | |
B | 52 | 60 | 80 | 87 | 97 | 135 | |
h | 34 | 40 | 47 | 49 | 59 | 57 | |
Hb | 52 | 64 | 71 | 73 | 62 | 83 |

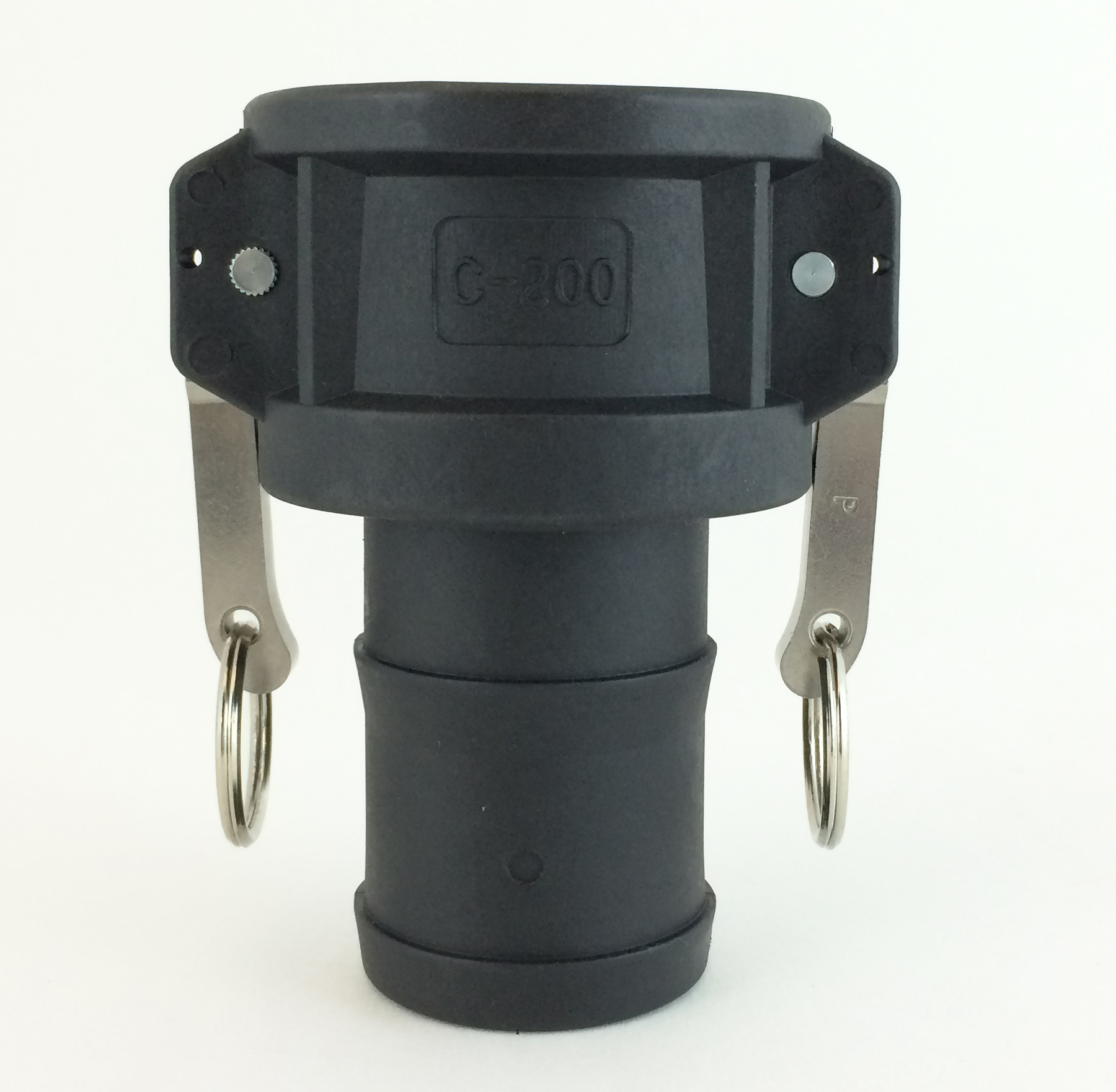

Type C
Series Code: FIPC
SIZE | INCH | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 3 |
mm | 20 | 25 | 32 | 40 | 50 | 80 | |
A | 110 | 125 | 177 | 188 | 197 | 248 | |
B | 52 | 60 | 80 | 87 | 97 | 135 | |
h | 34 | 40 | 47 | 49 | 59 | 57 | |
Hc | 84 | 99 | 107 | 109 | 127 | 157 | |
Fc | 15 | 20 | 25 | 32 | 45 | 67 | |
I | 21 | 27 | 34 | 41 | 53 | 79 |

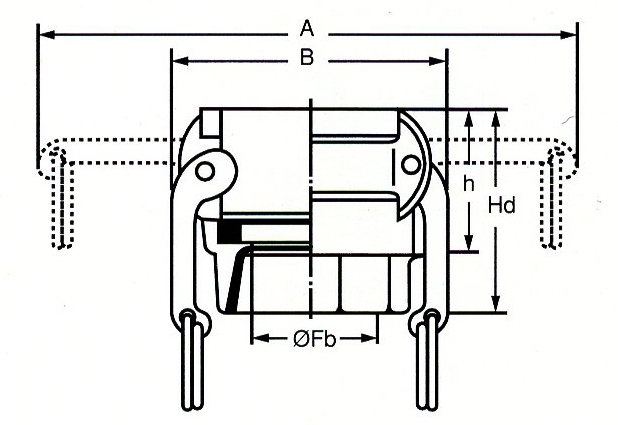

Type D
Series Code: FIPD
SIZE | INCH | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 3 |
mm | 20 | 25 | 32 | 40 | 50 | 80 | |
A | 110 | 125 | 177 | 188 | 197 | 248 | |
B | 52 | 60 | 80 | 87 | 97 | 135 | |
h | 34 | 40 | 47 | 49 | 59 | 57 | |
Hd | 84 | 99 | 107 | 109 | 127 | 157 | |
Fb | 15 | 20 | 25 | 32 | 45 | 67 |
Type E

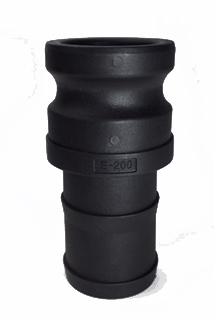

Series Code: FIPE
SIZE | INCH | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 3 |
mm | 20 | 25 | 32 | 40 | 50 | 80 | |
Fc | 15 | 20 | 25 | 33 | 45 | 67 | |
He | 89 | 106 | 111 | 113 | 130 | 162 | |
E | 19 | 24 | 29 | 36 | 46 | 73 | |
I | 21 | 27 | 34 | 40 | 53 | 79 |
Type F
Series Code: FIPF
SIZE | INCH | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 3 |
mm | 20 | 25 | 32 | 40 | 50 | 80 | |
K | 33 | 41 | 50 | 57 | 68 | 96 | |
Hf | 58 | 69 | 80 | 79 | 86 | 103 | |
E | 19 | 24 | 29 | 36 | 46 | 73 |

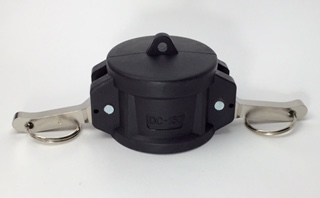

Type DC
Series Code: FIPG
SIZE | INCH | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 3 |
mm | 20 | 25 | 32 | 40 | 50 | 80 | |
A | 110 | 125 | 177 | 188 | 197 | 248 | |
B | 52 | 60 | 80 | 87 | 97 | 135 | |
hg | 33 | 40 | 47 | 48 | 57 | 58 | |
Hg | 45 | 52 | 60 | 63 | 86 | 71 |

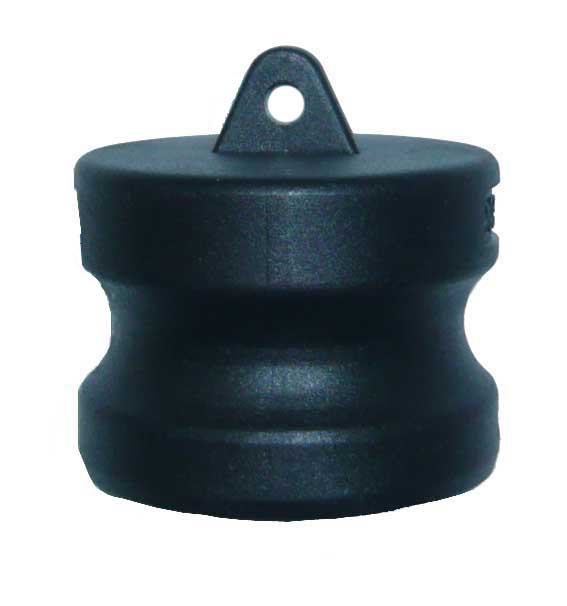

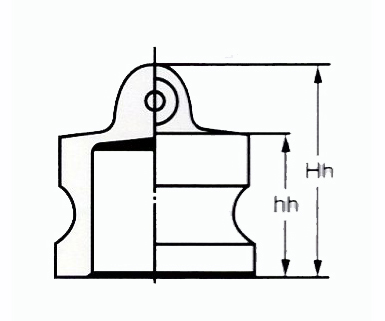

Type DP
Series Code: FIPH
SIZE | INCH | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 3 |
mm | 20 | 25 | 32 | 40 | 50 | 80 | |
hh | 27 | 32 | 39 | 40 | 47 | 54 | |
Hh | 39 | 44 | 51 | 55 | 66 | 67 |
