Brass camlock fittings

With thorough understanding of the domain, we are offering a broad collection of SUNZE Brass Camlok Coupling that is highly demanded of copper quality by our clients. Owing to its fine finish, durability and rust resistance, offered camlock coupling finds its extensive applications in various industries, assembly of steam and hot water hoses used in food, pharmaceutical, gas and liquids transport industry application.Moreover, Sunze brass camlock fittings fully conform to the dimensions and tolerances of MIL-C-27487/A-A-59326 and pressure-tested to three times the recommended working pressure. Among many metal and non-metal camlock couplings, brass cam lock is a premium option. It not only has good corrosion resistance but also durability and affordability. Its service time is much longer than polypropylene and nylon.

Chemical Analysis of the Composition is available on requested.

The raw material of composition averge of CU is 58% to ensure that you are getting the material grade you requested.• Good corrosive resistance • No-sparking • Durable & strong • Temperature range: -150°F to +450°F (-101°C to + 232°C)

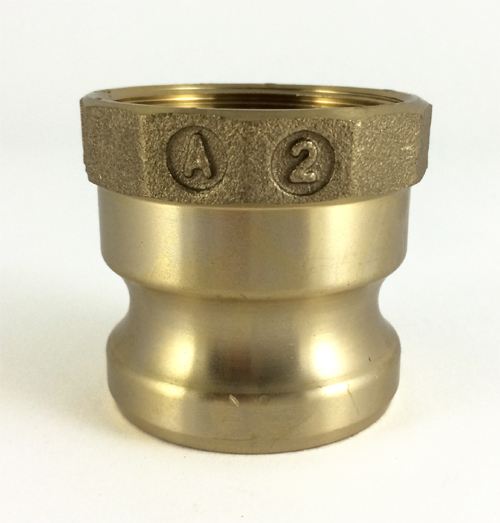

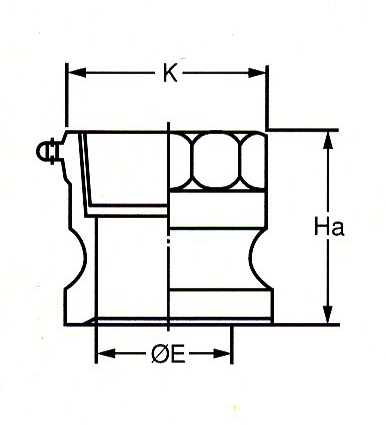

Brass Camlock Fitting Type A

Thread: BSP & NPT

SIZE	INCH	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
	mm	15	20	25	32	40	50	65	80	100	125	150
K		26	33	41	50	57	68	83	96	129	168	192
Ha		41	41	49	54	55	62	78	73	80	79	86
E		14	19	24	29	37	46	55	73	98	122	148
kg/pc		0.072	0.215	0.16	0.26	0.28	0.435	0.66	0.8	1.6	2.2	3

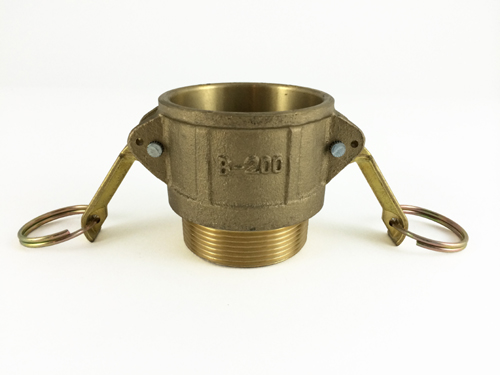

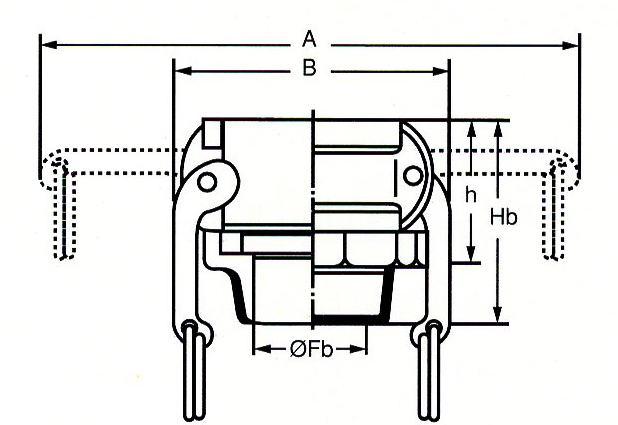

Brass Camlock Fitting Type B

Thread: BSP & NPT

Gasket: NBR (std)





SIZE	INCH	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
	mm	15	20	25	32	40	50	65	80	100	125	150
A		-	110	125	177	188	197	210	248	280	306	595
B		-	52	60	80	87	97	110	135	165	190	254
h		31	34	40	47	49	59	53	57	62	65	70
Hb		48	52	64	71	73	62	85	83	102	105	115
Fb		14	20	26	34	38	50	66	78	94	117	142
kg/pc		0.16	0.215	0.335	0.56	0.52	0.66	0.849	1.345	1.97	1.95	2.827

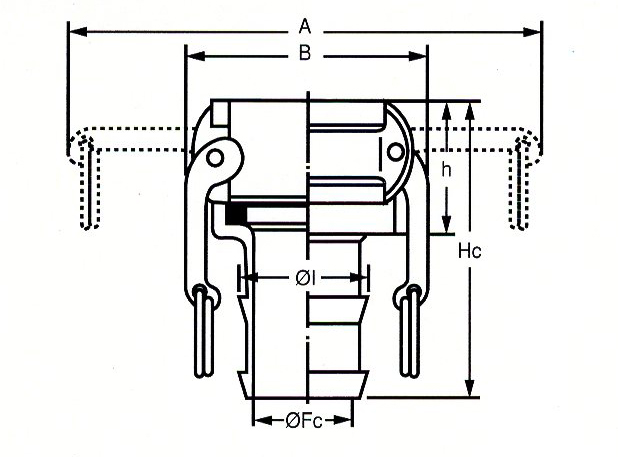

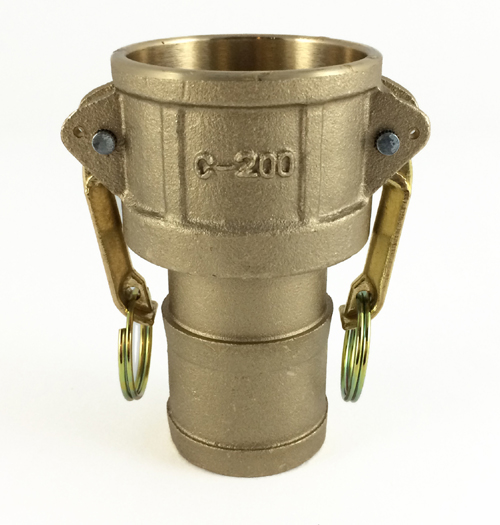

Brass Camlock Fitting Type C

Gasket: NBR (std)



SIZE	INCH	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
	mm	15	20	25	32	40	50	65	80	100	125	150
A		-	110	125	177	188	197	210	248	280	306	595
B		-	52	60	80	87	97	110	135	165	190	254
h		31	34	40	47	49	59	53	57	62	65	70
Hc		88	84	99	107	109	127	135	157	170	189	214
Fc		8	15	20	25	32	45	57	67	89	114	142
I		15	21	27	34	41	53	67	79	105	134	154
kg/pc		0.175	0.26	0.375	0.61	0.58	0.78	1.235	1.66	2.3	2.31	4.71

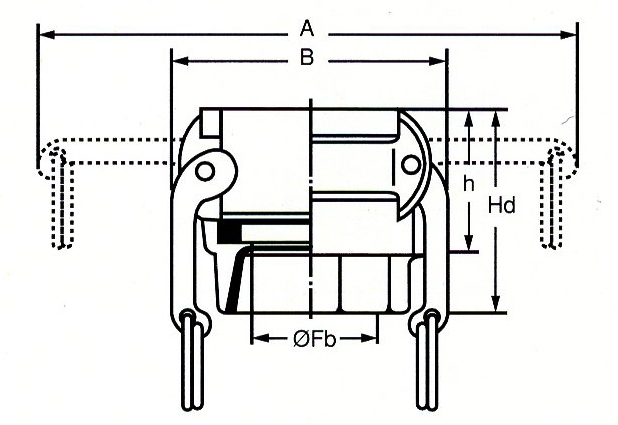

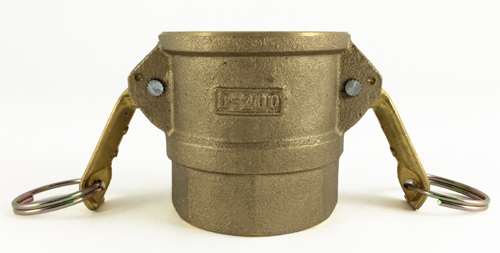

Brass Camlock Fitting Type D

Thraead: NPT, BSP

Gasket: NBR (std)



SIZE	INCH	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
	mm	15	20	25	32	40	50	65	80	100	125	150
A		-	110	125	177	188	197	210	248	280	306	595
B		-	52	60	80	87	97	110	135	165	190	254
h		31	34	40	47	49	59	53	57	62	65	70
Hd		88	84	99	107	109	127	135	157	170	189	214
Fb		8	15	20	25	32	45	57	67	89	114	142
kg/pc		0.185	0.235	0.36	0.551	0.555	0.68	0.963	1.347	2.35	3.1	4

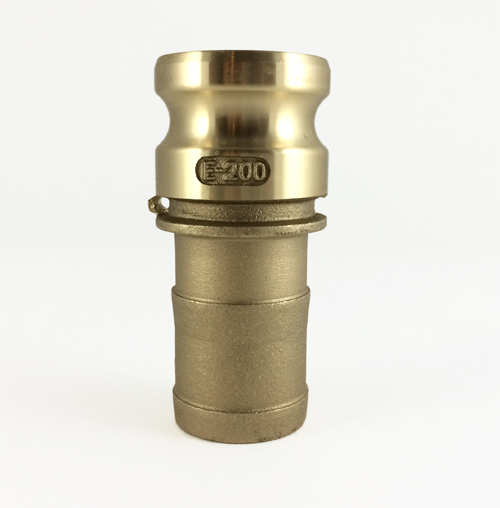

Brass Camlock Fitting Type E



SIZE	INCH	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
	mm	15	20	25	32	40	50	65	80	100	125	150
Fc		8	15	20	25	33	45	55	67	92	117	142
He		87	89	106	111	113	130	146	162	178	200	220
E		14	19	24	29	36	46	55	73	98	122	148
I		15	21	27	34	40	53	67	79	105	134	154
kg/pc		0.12	0.175	0.262	0.39	0.49	0.65	1.027	1.2	1.9	3.66	5.1

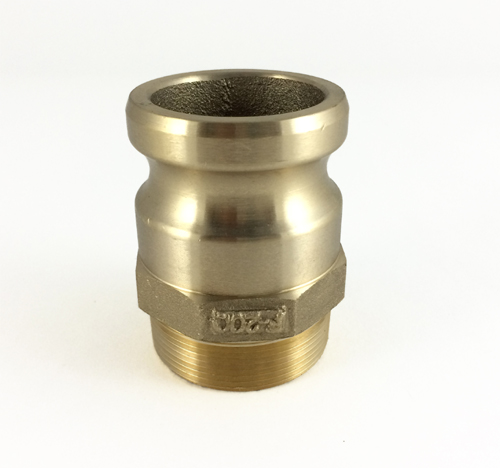

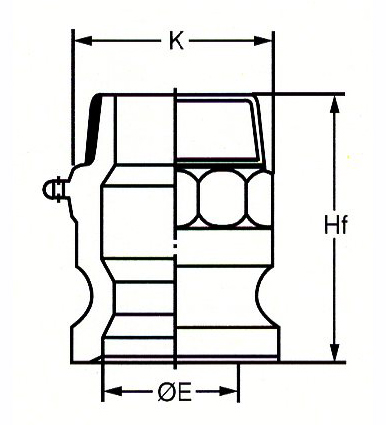

Brass Camlock Fitting Type F

Thraead: NPT, BSP



SIZE	INCH	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
	mm	15	20	25	32	40	50	65	80	100	125	150
K		26	33	41	50	57	68	83	96	129	168	192
Hf		48	58	69	80	79	86	99	103	114	117	129
E		14	19	24	29	36	46	55	73	98	122	148
kg/pc		0.094	0.155	0.24	0.37	0.41	0.57	0.9	1.05	1.88	2.59	3.52

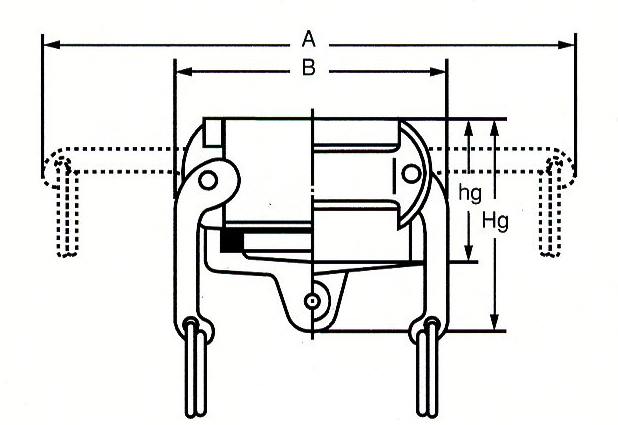

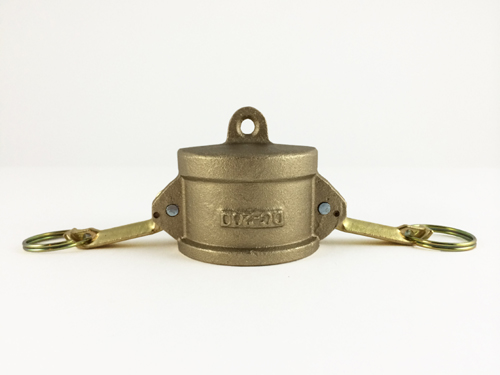

Brass Camlock Fitting Type G (DC)

Gasket: NBR (std)



SIZE	INCH	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
	mm	15	20	25	32	40	50	65	80	100	125	150
A		-	110	125	177	188	197	210	248	280	306	595
B		-	52	60	80	87	97	110	135	165	190	254
hg		32	33	40	47	48	57	55	58	62	65	70
Hg		44	45	52	60	63	86	70	71	82	85	90
kg/pc		0.135	0.19	0.295	0.457	0.5	0.52	0.699	0.91	1.82	2	3.6

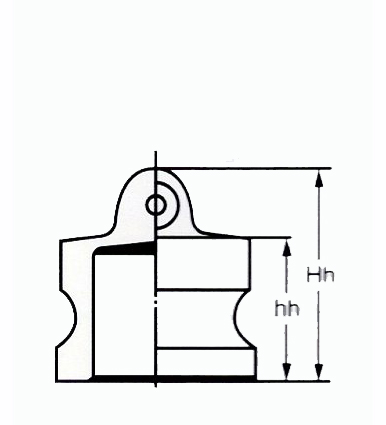

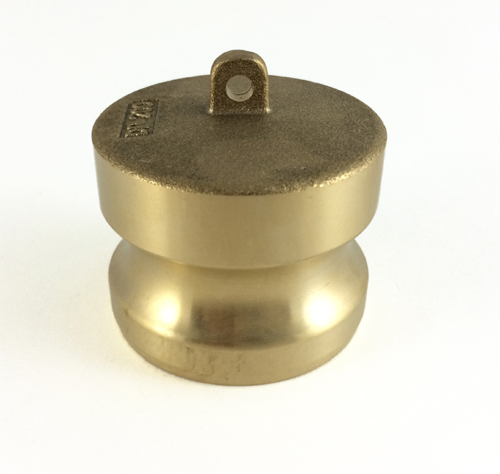

Brass Camlock Fitting Type H (DP)



SIZE	INCH	1/2	3/4	1	1-1/4	1-1/2	2	2-1/2	3	4	5	6
	mm	15	20	25	32	40	50	65	80	100	125	150
hh		30	27	32	39	40	47	50	54	54	54	60
Hh		42	39	44	51	55	66	65	67	79	79	85
kg/pc		0.08	0.095	0.125	0.215	0.275	0.4	0.478	0.61	1.07	1.615	2.67

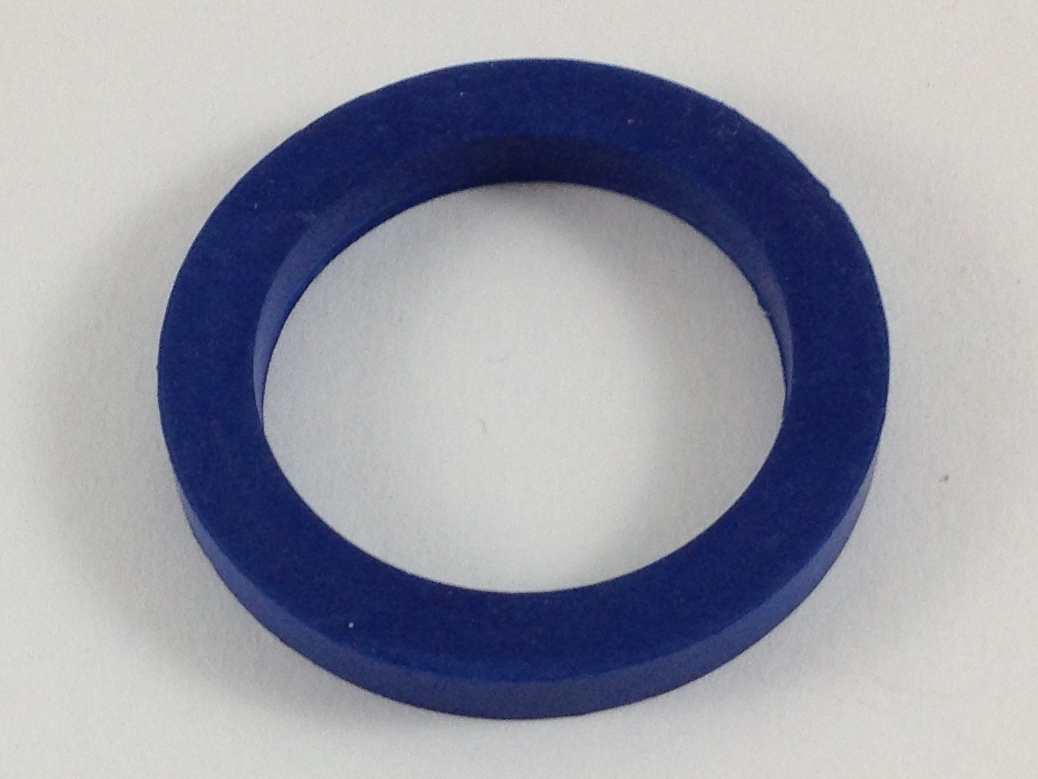

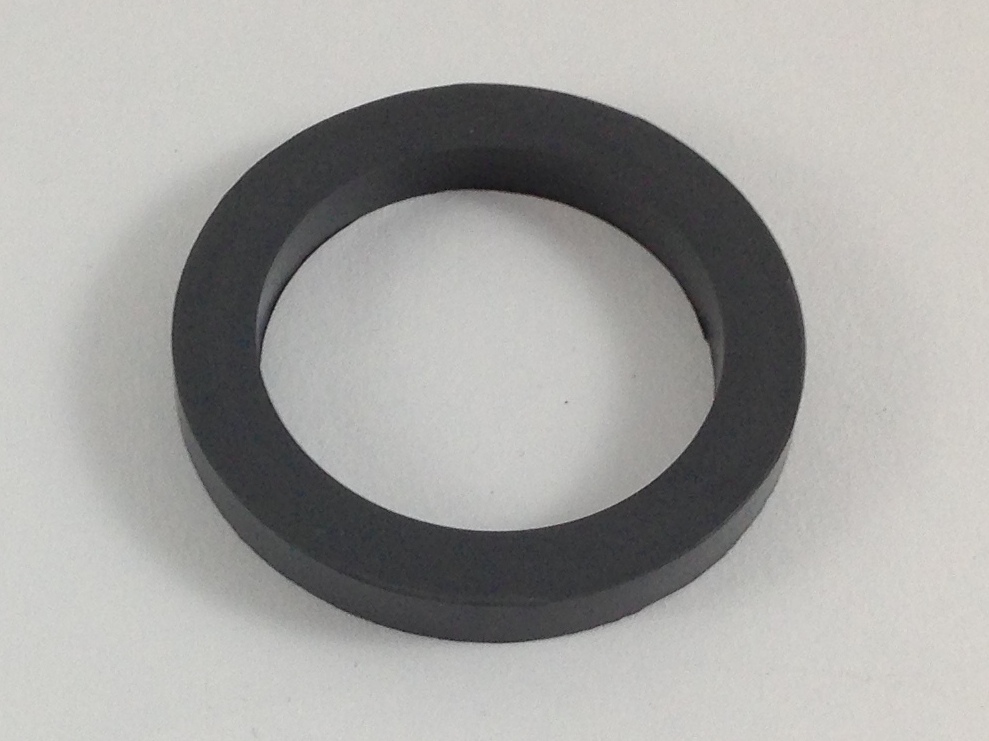

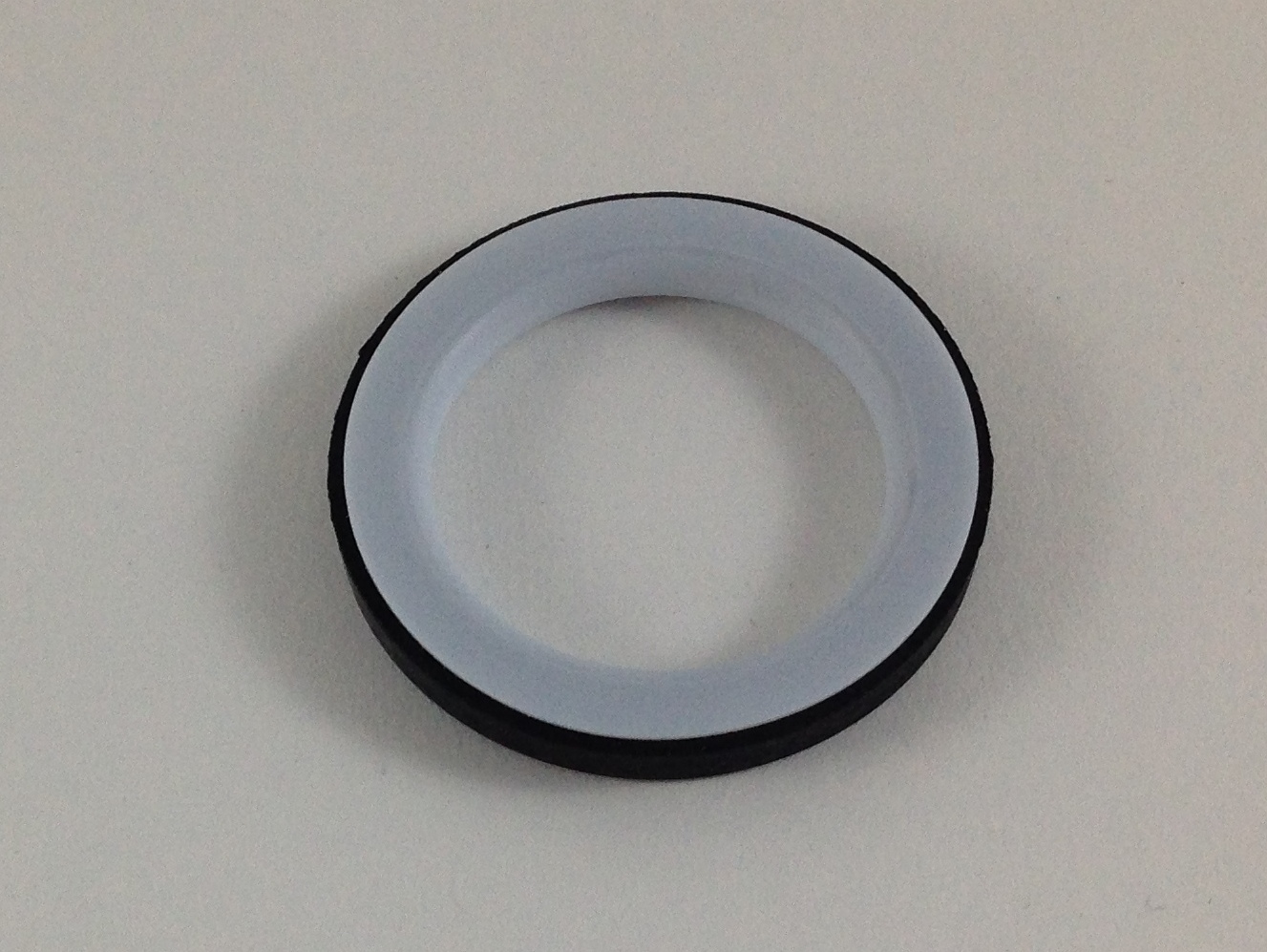

Optional Gasket:

 EPDM Blue    Vition Gray    NBR+TFE
