Inquiry
Pu Tubing
-
3mm OD to 12mm OD, 1/4, 3/8, 1/2
General industrial automation equipment’s pipe line uses.
*Elasticity rebound. *Resistance to abrasion and low temperature. *It remains soft at a low temperature.
-
Available Size
Size: 4mm OD to 12mm OD
Temperature range: -10c to + 50c
Color: orange, black, blue, natural white, others color upon on request.

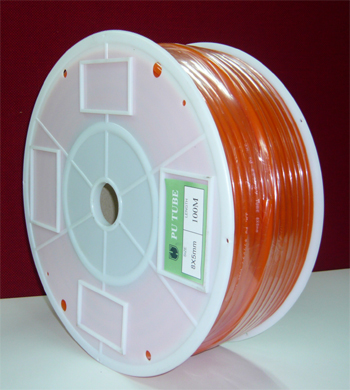

PU TUBE: High physical properties, elasticity rebound, resistance to abrasion and low temperature. Orange, Blue & Black color. It can be applied to all purposes in industries and pneumatic system machines etc.,
Hardness: 85A
Temperature rage: -20C to 60C
W/P: 15kgs/cm at 23C
Color: Blue, Black, Orange (std) other colors available on request.
|
|
OD/mm |
ID/mm |
P. ROLL |
|
PUT02032 |
3 |
2 |
200/m |
|
PUT02542 |
4 |
2.5 |
200/m |
|
PUT02042 |
4 |
2 |
200/m |
|
PUT03052 |
5 |
3 |
200/m |
|
PUT05062 |
6 |
4 |
200/m |
|
PUT06081 |
8 |
6 |
100/m |
|
PUT05081 |
8 |
5 |
100/m |
|
PUT06581 |
10 |
6.5 |
100/m |
|
PUT08111 |
11 |
8 |
100/m |
|
PUT08121 |
12 |
8 |
100/m |
|
PUT13161 |
16 |
13 |
100/m |
|
PUT12161 |
16 |
12 |
100/m |
|
PUT04631 |
6.35(1/4”) |
4.2 |
200/m |
|
PUT06951 |
9.5(3/8”) |
6.5 |
100/m |
Sunze Rubber Ind. Co. Ltd.
7Fl. No.9 Lane 83 Sec.1 Chung Shan N. Rd. Taipei. Taiwan
