European Orion Air Couplers
-
Description

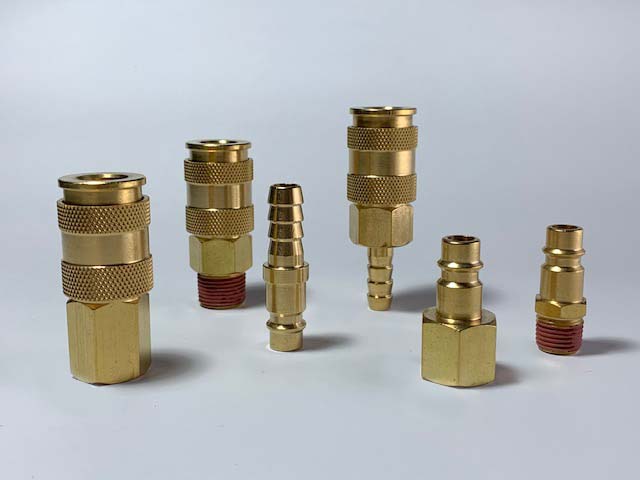

Sunze European Orion Air Quick Couplers are made of bronze and can be applied to low or medium pressure air or water service. PQ31 One Touch (one hand operation).
European Orion type,
W/P:5bar/70psi
Material: Bronze, brass color
PQ31: Ring parts(brass color), Body part (brass color), End part (brass color)
PQ3P: All parts (brass color)
CO: Taiwan

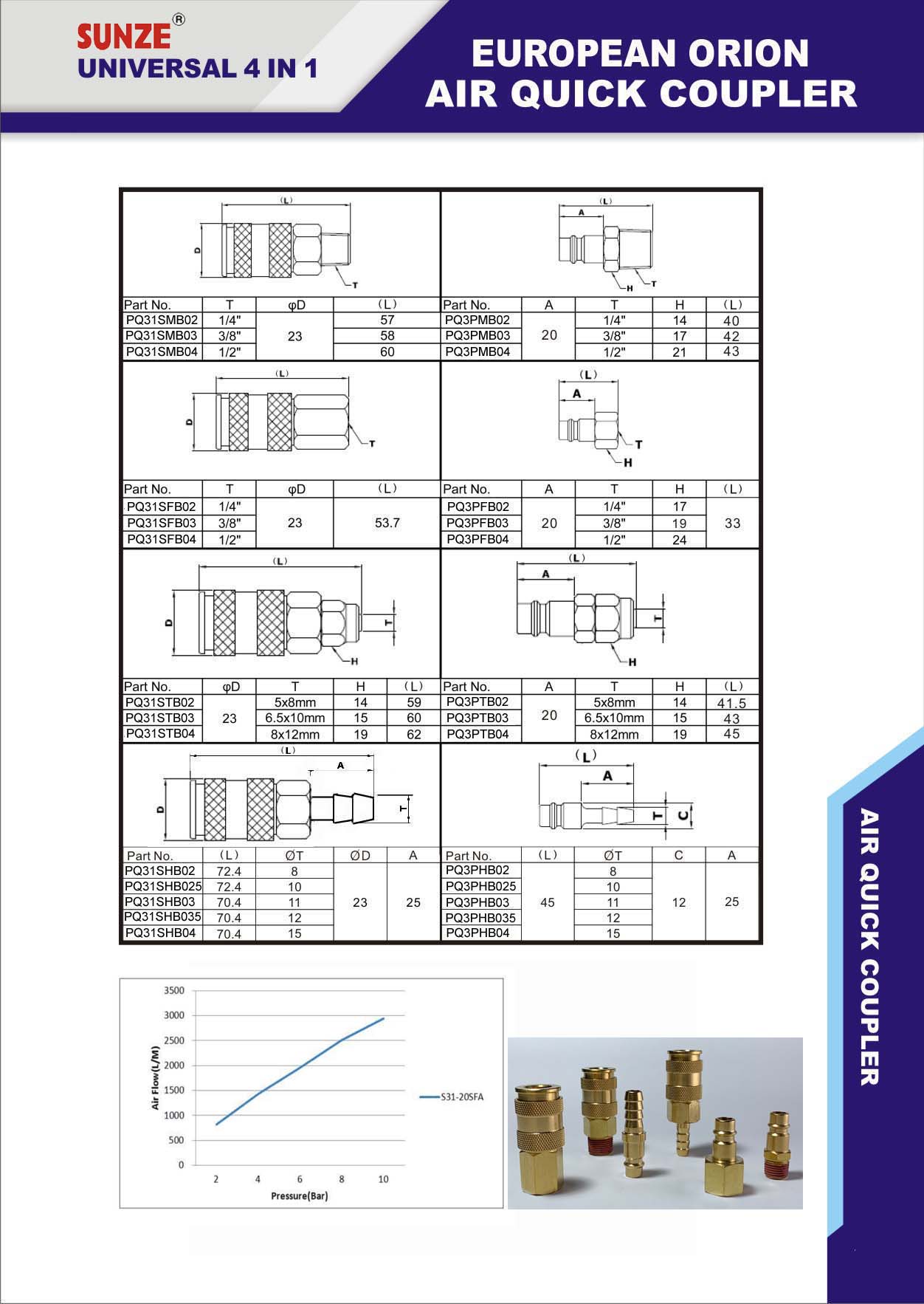

- Available Size Size: 1/4”, 5/16”, 3/8” and 1/2” thread, tube ID size, tube end: 5mm x 8mm, 6.5mm x 10mm, 8mm x 12mm
Type: PQ31 Coupler/PQ3P Adapter
One hand (one touch) operation quick coupler PT thread, brass color, 20/bar w/p
Coupler x Me End
Coupler x Fe End
Coupler x He End
Coupler x Tube End
hread sealed Acrylic W/Liquid
Other brands spec. interchanges are available on request.
PQ610B10H (PARKER B20-52B)
PQ61SMB023/8 (PARKER B22E)
Optional request:
1) Packing: plastic tray in the blank inner box.
2) Logo: Coupler & Plug stamped logo (4mm x 6.8mm) available on request.
Sunze Rubber Ind. Co. Ltd.
7Fl. No.9 Lane 83 Sec.1 Chung Shan N. Rd. Taipei. Taiwan
