Air Couplers

Spec

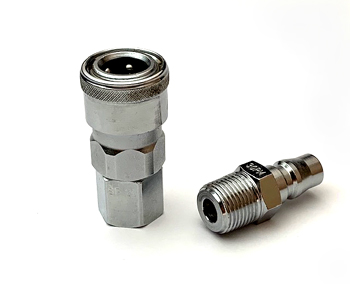

Type: PQ1S

One hand (one touch) operation quick coupler PT thread, chrome plated, 20/bar w/p

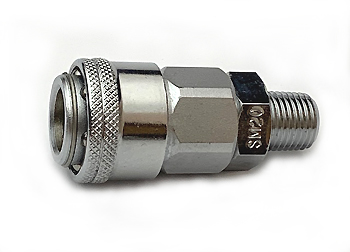

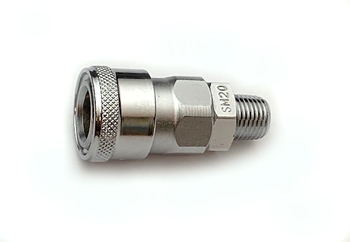

Coupler x Me End

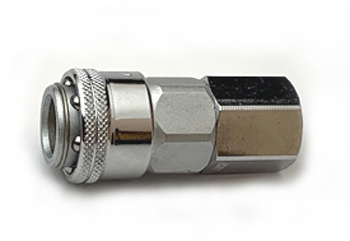

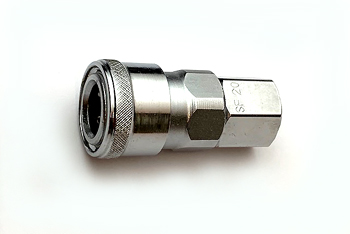

Coupler x Fe End

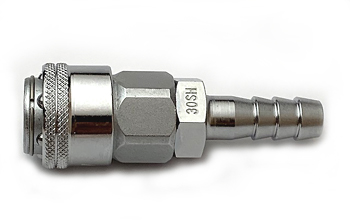

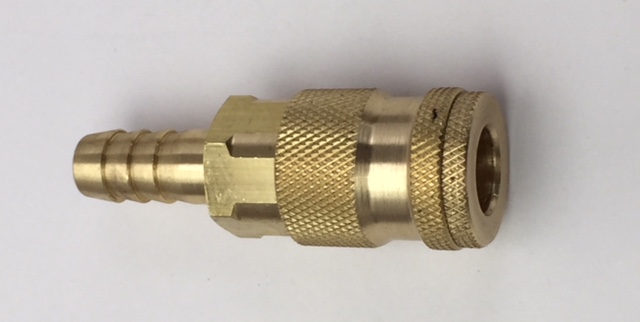

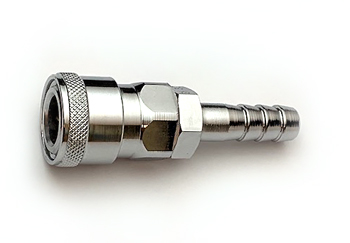

Coupler x He End

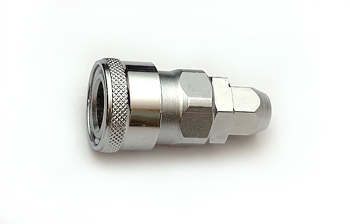

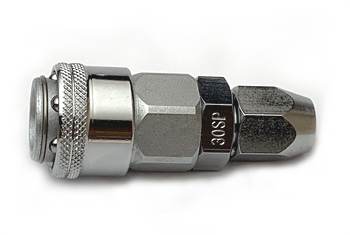

Coupler x Tube End

	Coupler Male		Coupler Female		Coupler Hose End		Coupler Tube End
Size	Iron	Brass	Iron	Brass	Iron	Brass	Iron	Brass
1/4”	PQ1SMS02	PQ1SMB02	PQ1SFS02	PQ1SFB02	PQ1SHS02	PQ1SHB02	PQ1STS02	PQ1STB02
5/16"	PQ1SMS025	PQ1SMB025	PQ1SFS025	PQ1SFB025	PQ1SHS02	PQ1SHB025	PQ1STS025	PQ1STB025
3/8”	PQ1SMS03	PQ1SMB03	PQ1SFS03	PQ1SFB03	PQ1SHS03	PQ1SHB03	PQ1STS03	PQ1STB03
1/2”	PQ1SMS04	PQ1SMB04	PQ1SFS04	PQ1SFB04	PQ1SHS04	PQ1SHB04	PQ1STS04	PQ1STB04

Type: PQP

One and two hands operation quick coupler plug, PT thread,

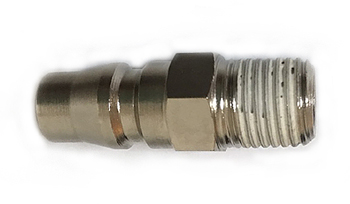

Plug x Me End

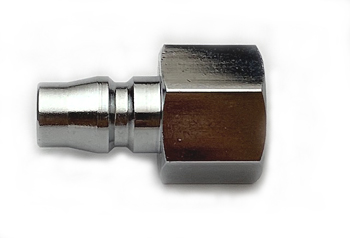

Plug x Fe End
Plug x He End
Plug x Tube End

	Plug Male		Plug Female		Plug Hose End		Plug Tube End
Size	Iron	Brass	Iron	Brass	Iron	Brass	Iron	Brass
1/4”	PQPMS02	PQPMB02	PQPFS02	PQPFB02	PQPHS02	PQPHB02	PQPTS02	PQPTB02
5/16"	PQPMS025	PQPMB025	PQPFS025	PQPFB025	PQPHS025	PQPHB025	PQPTS025	PQPTB025
3/8”	PQPMS03	PQPMB03	PQPFS03	PQPFB03	PQPHS03	PQPHB03	PQPTS03	PQPTB03
1/2”	PQPMS04	PQPMB04	PQPFS04	PQPFB04	PQPHS04	PQPHB04	PQPTS04	PQPTB04

Type: PQS

Two hands (two touch) operation quick coupler PT thread, chrome plated, 20/bar w/p

	Coupler Male		Coupler Female		Coupler Hose End		Coupler Tube End
Size	Iron	Brass	Iron	Brass	Iron	Brass	Iron	Brass
1/4”	PQSMS02	PQSMB02	PQSFS02	PQSFB02	PQSHS02	PQSHB02	PQSTS02	PQSTB02
5/16"	PQSMS025	PQSMB025	PQSFS025	PQSFB025	PQSHS02	PQSHB025	PQSTS025	PQSTB025
3/8”	PQSMS03	PQSMB03	PQSFS03	PQSFB03	PQSHS03	PQSHB03	PQSTS03	PQSTB03
1/2”	PQSMS04	PQSMB04	PQSFS04	PQSFB04	PQSHS04	PQSHB04	PQSTS04	PQSTB04

Other brands spec. interchanges are available on request.

PQ610B10H (PARKER B20-52B)

PQ61SMB023/8 (PARKER B22E)

Optional request:

1) Packing: plastic tray in the blank inner box.

2) Logo: Coupler & Plug stamped logo (4mm x 6.8mm) available on request.

3) Thread sealed Acrylic W/Liquid
