T Bolt Clamps

Application and Spec

Sunze T bolt clamps' application is as below:

*Agriculture.

*Construction.

*Material handling.

*Leak proof for vehicles turbo silicone hose.

*Radiator silicone hoses.

Standard Torque range: from 15Nm to 40Nm depending on size.

Our T bolt clamps' spec and part no. are as below:

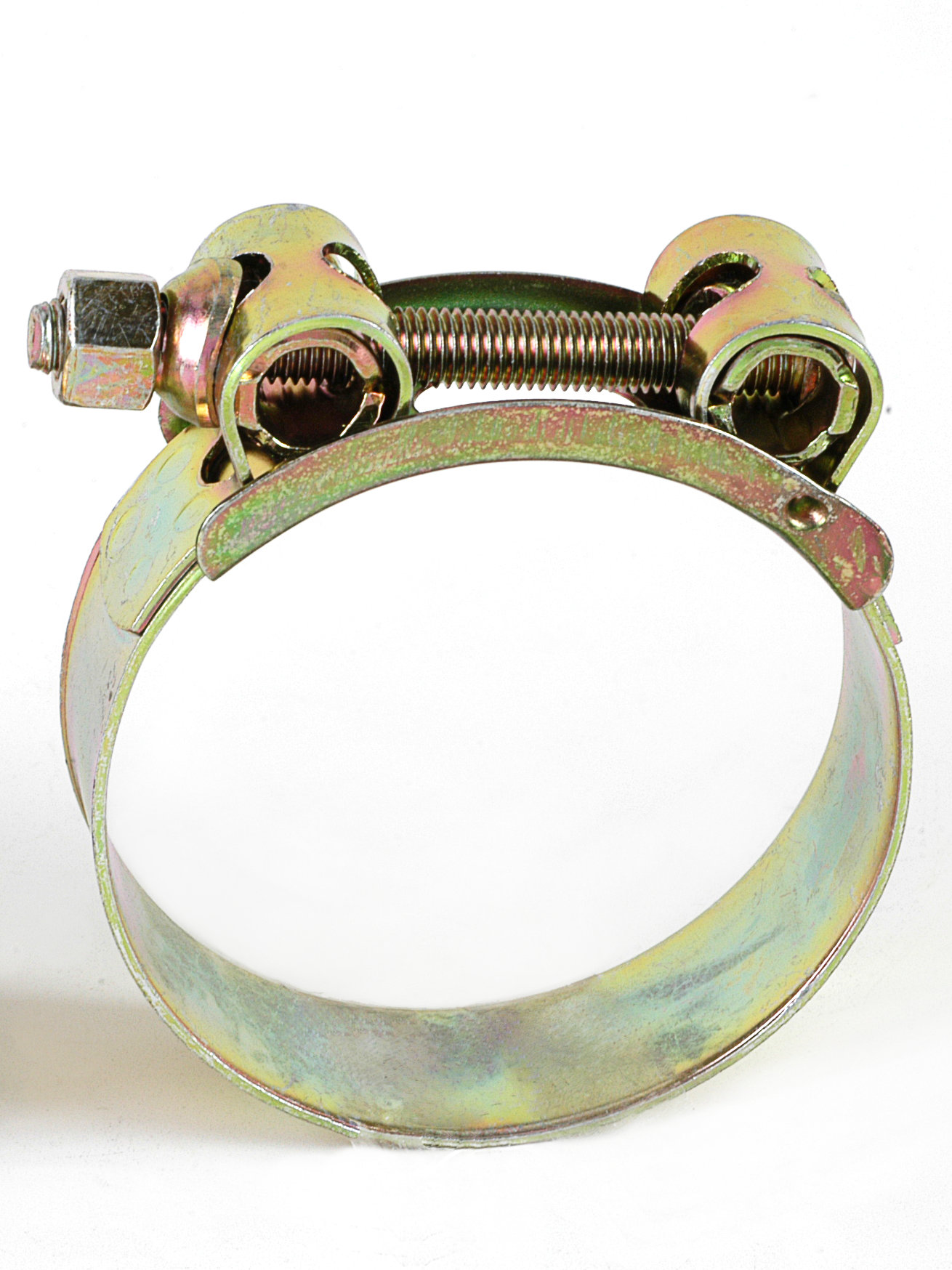

T bolt clamp EDA Series: Band is made of Carbon Steel color plated with hollow mandrel

One bolt with hollow maddrel, zince color plated, #019-028 torque 15/Nm, #031-043 torque 15/Nm, #047-067 torque 15/Nm, #073-121 torque 30/Nm, #130-252 torque 40/Nm, Recomend tightning tension: 8/Nm #019-028, 10Nm #031-067, 20Nm #073-252

Part No.	Size/mm	B Width/mm	Part No.	Size/mm	B Width/mm
EDA019	17-19	18x0.8/t	EDA091	86-91	24
EDA022	20-22	18	EDA097	92-97	24
EDA025	23-25	18	EDA103	98-103	24
EDA028	26-28	18	EDA112	104-112	24
EDA031	29-31	20x1.0/t	EDA121	113-121	24
EDA035	32-35	20	EDA130	122-130	24
EDA039	35-39	20	EDA139	131-139	26x1.6/t
EDA043	40-43	20	EDA148	140-148	26
EDA047	44-47	22x1.2/t	EDA161	149-161	26
EDA051	48-51	22	EDA174	162-174	26
EDA055	52-55	22	EDA187	175-187	26
EDA059	56-59	22	EDA200	188-200	26
EDA063	60-63	22	EDA213	201-213	26
EDA067	64-67	22	EDA226	214-226	26
EDA073	68-73	24x1.2/t	EDA239	227-239	26
EDA079	74-79	24	EDA252	240-252	26
EDA085	8-85	24

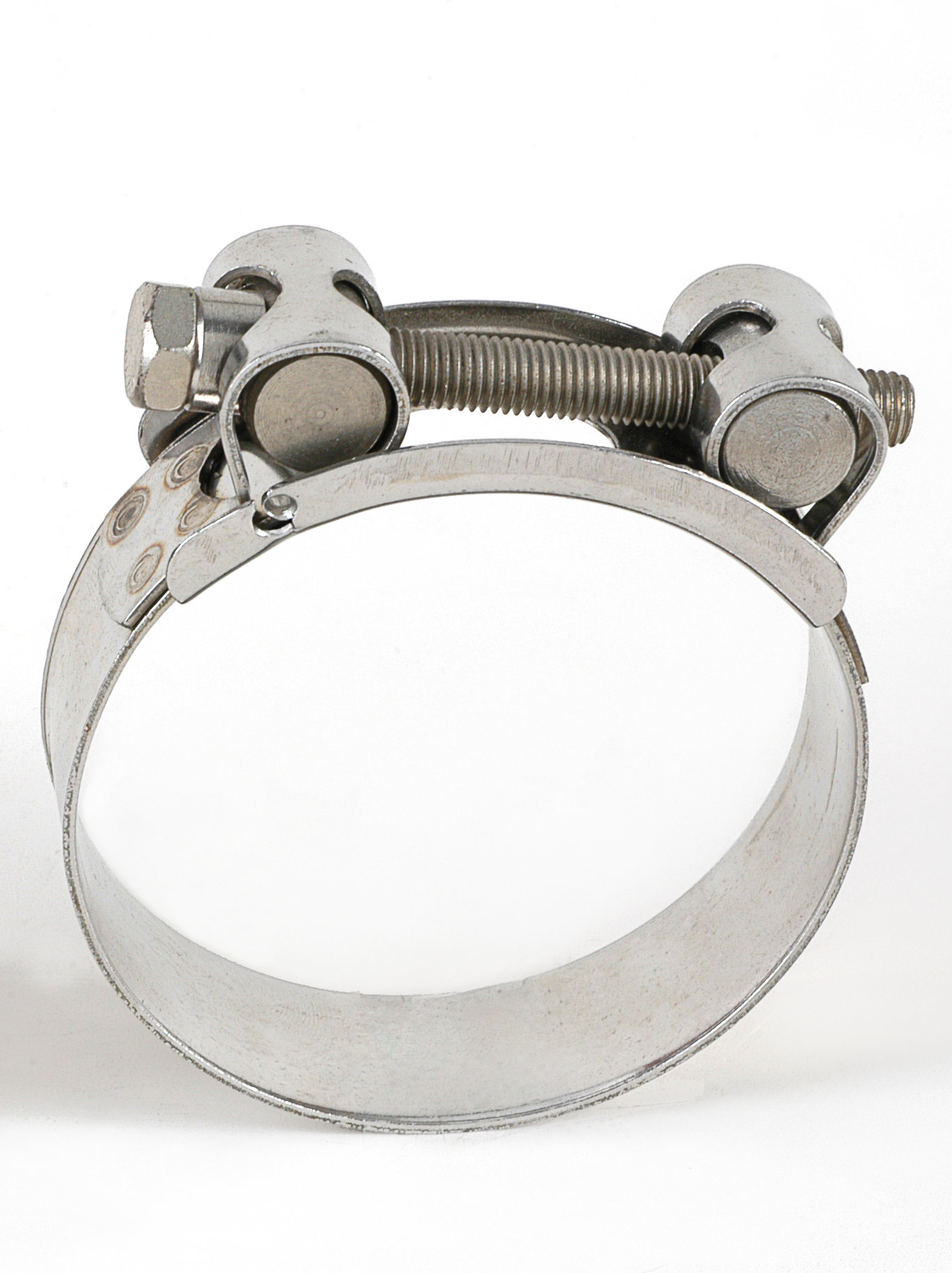

T bolt clamp EDB Series: Band is made of SS304 band SS305 with hollow mandrel and screw, nut.

One bolt with hollow maddrel, , #019-028 torque 15/Nm, #031-043 torque 15/Nm, #047-067 torque 15/Nm, #073-121 torque 30/Nm, #130-252 torque 40/Nm, Recomend tightning tension: 8/Nm #019-028, 10Nm #031-067, 20Nm #073-252

Part No.	Size/mm	B Width/mm	Part No.	Size/mm	B Width/mm
EDB019	17-19	18x0.8/t	EDB091	86-91	24
EDB022	20-22	18	EDB097	92-97	24
EDB025	23-25	18	EDB103	98-103	24
EDB028	26-28	18	EDB112	104-112	24
EDB031	29-31	20x1.0/t	EDB121	113-121	24
EDB035	32-35	20	EDB130	122-130	24
EDB039	35-39	20	EDB139	131-139	26x1.6/t
EDB043	40-43	20	EDB148	140-148	26
EDB047	44-47	22x1.2/t	EDB161	149-161	26
EDB051	48-51	22	EDB174	162-174	26
EDB055	52-55	22	EDB187	175-187	26
EDB059	56-59	22	EDB200	188-200	26
EDB063	60-63	22	EDB213	201-213	26
EDB067	64-67	22	EDB226	214-226	26
EDB073	68-73	24x1.2/t	EDB239	227-239	26
EDB079	74-79	24	EDB252	240-252	26
EDB085	8-85	24

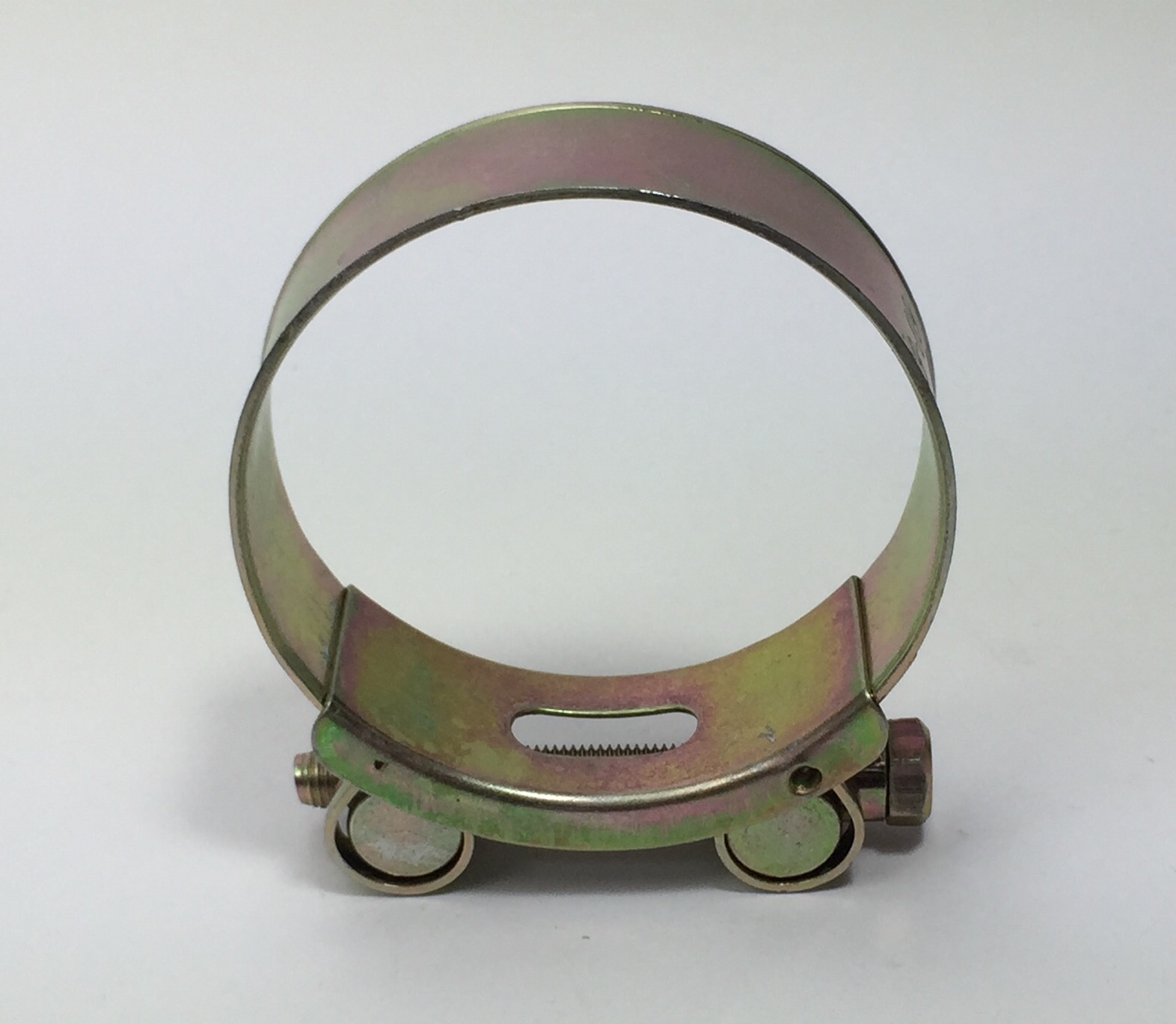

T bolt clamp EDC Series: Band is made of Carbon Steel color plated with Solid mandrel.

One bolt with solid maddrel, zince color plated, #019-028 torque 15/Nm, #031-043 torque 15/Nm, #047-067 torque 15/Nm, #073-121 torque 30/Nm, #130-252 torque 40/Nm, Recomend tightning tension: 8/Nm #019-028, 10Nm #031-067, 20Nm #073-252

Part No.	Size/mm	B Width/mm	Part No.	Size/mm	B Width/mm
EDC019	17-19	18x0.8/t	EDC091	86-91	24
EDC022	20-22	18	EDC097	92-97	24
EDC025	23-25	18	EDC103	98-103	24
EDC028	26-28	18	EDC112	104-112	24
EDC031	29-31	20x1.0/t	EDC121	113-121	24
EDC035	32-35	20	EDC130	122-130	24
EDC039	35-39	20	EDC139	131-139	26x1.6/t
EDC043	40-43	20	EDC148	140-148	26
EDC047	44-47	22x1.2/t	EDC161	149-161	26
EDC051	48-51	22	EDC174	162-174	26
EDC055	52-55	22	EDC187	175-187	26
EDC059	56-59	22	EDC200	188-200	26
EDC063	60-63	22	EDC213	201-213	26
EDC067	64-67	22	EDC226	214-226	26
EDC073	68-73	24x1.2/t	EDC239	227-239	26
EDC079	74-79	24	EDC252	240-252	26
EDC085	8-85	24

T bolt clamp EDD Series: Band is made of SS304 band SS305 with solid mandrel and screw, nut.

One bolt with solid maddrel, Stainless steel, #019-028 torque 15/Nm, #031-043 torque 15/Nm, #047-067 torque 15/Nm, #073-121 torque 30/Nm, #130-252 torque 40/Nm, Recomend tightning tension: 8/Nm #019-028, 10Nm #031-067, 20Nm #073-252

Part No.	Size/mm	B Width/mm	Part No.	Size/mm	B Width/mm
EDD019	17-19	18x0.8/t	EDD091	86-91	24
EDD022	20-22	18	EDD097	92-97	24
EDD025	23-25	18	EDD103	98-103	24
EDD028	26-28	18	EDD112	104-112	24
EDD031	29-31	20x1.0/t	EDD121	113-121	24
EDD035	32-35	20	EDD130	122-130	24
EDD039	35-39	20	EDD139	131-139	26x1.6/t
EDD043	40-43	20	EDD148	140-148	26
EDD047	44-47	22x1.2/t	EDD161	149-161	26
EDD051	48-51	22	EDD174	162-174	26
EDD055	52-55	22	EDD187	175-187	26
EDD059	56-59	22	EDD200	188-200	26
EDD063	60-63	22	EDD213	201-213	26
EDD067	64-67	22	EDD226	214-226	26
EDD073	68-73	24x1.2/t	EDD239	227-239	26
EDD079	74-79	24	EDD252	240-252	26
EDD085	8-85	24

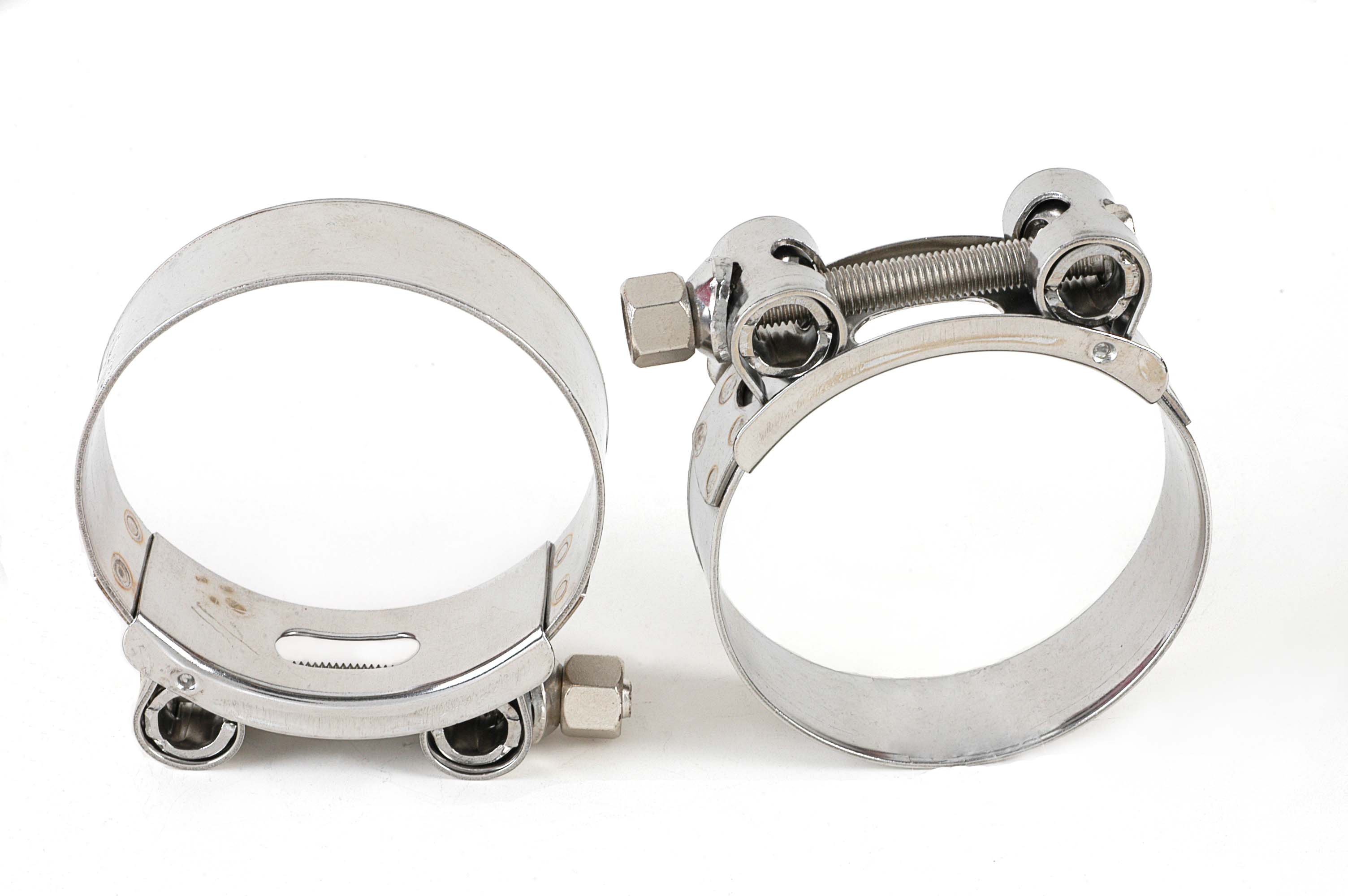

EDF & EDG T 2 bolts clamps, Zinc Plated & SS304 W/SS305 screw & nut, two bolts Solid mandrel.

Torque:#019-028 15Nm, #031-043 20Nm, #047-067 25Nm

#073-121 30Nm, #130-252 40Nm, Recom. Tightening T.:#019-028 8Nm, #031-067 10Nm, #073-252 20Nm.

Made in Taiwan

Part No.	Size/mm	B Wide/mm	Pkg/Qty	Part No.	Size/mm	B Wide/mm	Pkg/Qty
Z Plated				SS304
EDF074085	74-85	24x1.2	100/4bx	EDG074085	86-91	24x1.2	100/4bx
EDF078085	78-85		100/4bx	EDG078085	92-97		100/4bx
EDF078088	78-88		100/4bx	EDG078088	98-103		100/4bx
EDF080091	80-91		100/4bx	EDG080091	104-112		100/4bx
EDF095112	95-112		100/4bx	EDG095112	113-121		100/4bx
EDF102120	104-120		100/4bx	EDG102120	122-130		100/4bx
EDF104128	104-128		100/4bx	EDG104128	131-139		60/6bx
EDF112128	112-128		100/4bx	EDG112128	140-148		60/6bx
EDF115139	115-139	26x1.6	60/6bx	EDG115139	149-161	26x1.6	80/8bx
EDF135161	135-161		80/6bx	EDG135161	162-174		80/8bx
EDF142166	142-166		80/10bx	EDG142166	175-187		60/10bx
EDF160186	160-186		60/10bx	EDG160186	188-200		60/10bx
EDF162186	162-186		60/10bx	EDG162186	201-213		60/10bx
EDF174200	174-200		60/10bx	EDG174200	214-226		60/10bx
EDF201213	201-213		60/10bx	EDG201213	227-239		60/10bx
