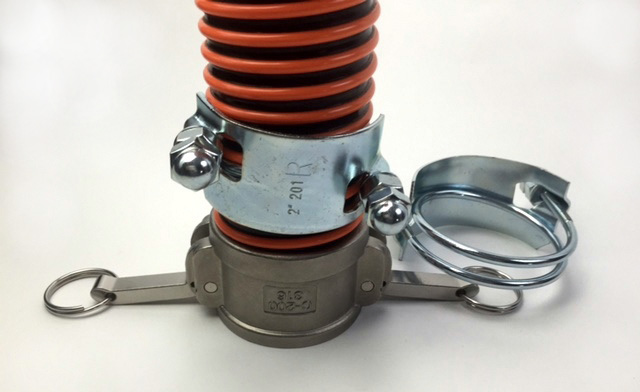

Helix Spiral Wire Bolt Clamp
-
Description
Hose Clamps Galvanized steel saddle, nuts and washers with electroplated, spiral thread bolts.
For use on convoluted cover hose, to determine which style clamp is need for your hose look at the end of the hose; if the helix spirals is a clockwise direction away from you (along the hose), a clockwise clamp is needed. If the helix spirals is a counterclockwise direction away from you a counterclockwise clamp is needed.
- Available Size Size: from 1-1/2” to 12”
These Clamps are use for Agriculture, Construction, Material handling, oil delivery's Corrugated Suction and Delivery Industrial Hoses.
Part No. | Size/mm | Wire D/mm | Pkg/Qty |
FCBS015 | 38-43 | 5.2 | 100 |
FCBS020 | 51-56 | 5.2 | 100 |
FCBS025 | 64-75 | 5.2 | 100 |
FCBS030 | 76-89 | 7 | 50 |
FCBS040 | 102-120 | 7 | 40 |
FCBS050 | 127-140 | 8.8 | 20 |
FCBS060 | 152-172 | 8.8 | 20 |
FCBS080 | 203-215 | 8.8 | 10 |
FCBS100 | 254-285 | 8.8 | 10 |
FCBS120 | 305-333 | 8.8 | 10 |
