DIN2817 Safety Clamps EN 14423 DIN2826 Brass
-
DIN2817 Safety Clamps EN 14423/DIN2826: Brass, Camlock Coupling EN14220-7/DIN2828, Pipe Fittings

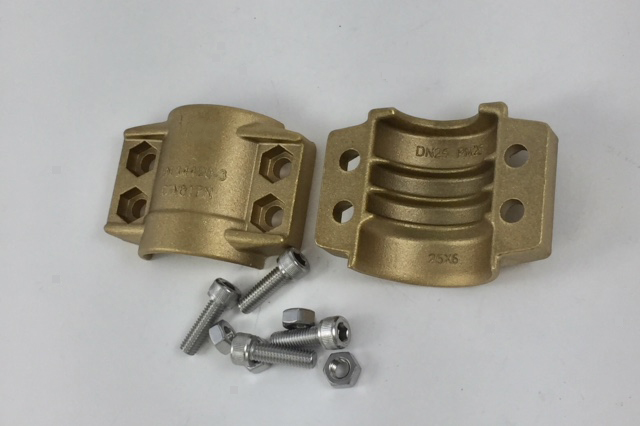

Assembly of steam and hot water hoses used in food, pharmaceutical and transport industry application. The safety clamps have a rim on the inside, which fits the hose shank collar when the bolts are tightened, the coupling can't be pulled out of the hose. Also the coupling shells and couplings can be easily dismantled for reuse.
- Hose OD 24mm to 67mm 1/2
W/P: 16bar/230psi with a temperature of 210 C/410 F
Shells Material: Brass CW617N/one pair/set
Bolts & Nuts: SS304/4pcs/set
| Code | ND | Hose OD mm | OD Hose (min-max mm) | Nuts and Bolts | Weight/NW(kg) | ||
| Qty | Thread | ||||||
| FCDNBS01505 | 15 | 22-24 | 13x5 | 4 | M6x20 | 0.243 | |
| FCDNBS02006 | 20 | 30-33 | 19x5 | 4 | M6x20 | 0.291 | |
| FCDNBS02506 | 25 | 36-39 | 25x6 | 4 | M6x20 | 0.313 | |
| FCDNBS03206 | 32 | 43-46 | 32x6 | 4 | M6x20 | 0.34 | |
| FCDNBS040065 | 40 | 50-53 | 38x6.5 | 4 | M6x20 | 0.413 | |
| FCDNBS04008 | 40 | 53-56 | 38x8 | 4 | M6x20 | 0.402 | |
| FCDNBS05008 | 50 | 64-67 | 50x8 | 4 | M8x25 | 0.616 | |
| FCDNBS06508 | 65 | 78-72 | 63x8 | 4 | M8x25 | 1.024 | |
| FCDNBS08008 | 80 | 89-93 | 75x8 | 4 | M8x25 | 1.13 | |
| FCDNBS10008 | 100 | 114-119 | 100x8 | 4 | M10x40 | 2.91 | |
